87227-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

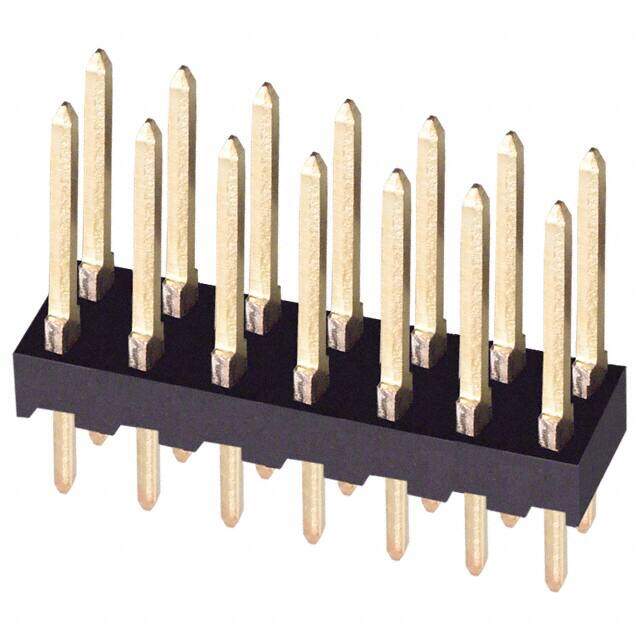

CONN HEADER VERT 14POS 2.54MM
PDF
/
Buying Options
Total Price: USD $3.76
Unit Price: USD $3.7576
≥1 USD $3.7576
≥10 USD $3.28856
≥100 USD $3.031248
Inventory: 1798
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.397mm
Contact Finish Thickness - Post Flash
Contact Finish Thickness - Mating 15.0μin 0.38μm
Plating Thickness 15μin
Length 15.84mm
Height 7.62mm
Technical
High Temperature Housing No
Mating Post Length 8.08mm
Contact Current Rating 3A
Dielectric Withstanding Voltage 1050VAC V
ELV Compliant
Mating Contact Pitch 0.1 inch
Insulation Resistance 5GOhm
Contact Resistance 12mOhm
Overall Contact Length 0.533 13.55mm
Rated Current (Signal) 3A
Lead Length 3.175mm
Housing Color Black
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.318 8.08mm
Number Of PCB Rows 2
Shrouding Unshrouded
Contact Length - Post 0.125 3.18mm
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency CSA
Reliability COMMERCIAL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.090 2.29mm
Depth 5.08mm
Orientation Vertical
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Gender Male
Number of Rows 2
Number of Positions 14
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series AMPMODU Mod II
Published 2008
Packaging Bulk
Operating Temperature -65°C~105°C
Physical
Insulation Material Thermoplastic
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 8 Weeks
