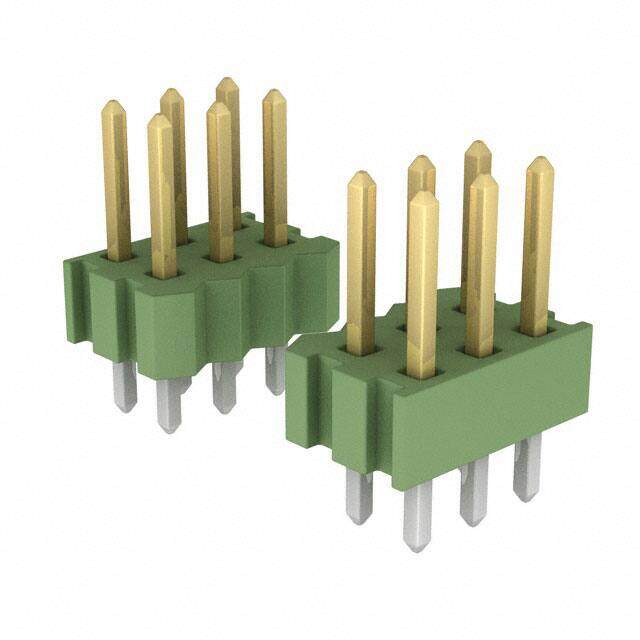

829492-5
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 15 POS 2.54mm Solder ST Thru-Hole
PDF
/
Inventory: 9779
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Contact Type Male Pin
Current Rating (Amps) 5A
Terminal Pitch 2.54mm
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Body Length or Diameter 0.5 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.124 3.15mm
Shrouding Unshrouded
Number Of PCB Rows 3
Contact Finish - Post Tin
Contact Length - Mating 0.276 7.00mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.299 inch
Body Depth 0.1 inch
Overall Contact Length 0.500 12.70mm
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.1 inch
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature SIDE TO SIDE STACKABLE
Number of Rows 3
Color Green
Number of Positions 15
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series AMPMODU Mod II
Published 2014
Packaging Bulk
Operating Temperature -65°C~105°C
PCB Contact Row Spacing 2.54 mm
Dielectric Withstanding Voltage 750VAC V
Physical
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.124 inch
Contact Finish Thickness - Post 118.1μin 3.00μm
Contact Finish Thickness - Mating 3.90μin 0.099μm
Alternative Model
