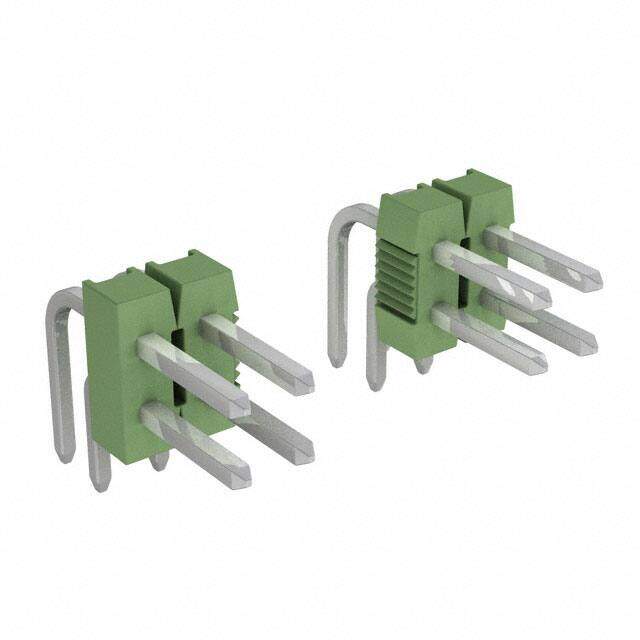

826955-9 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Headers & Wire Housings 2X09 POS R/A TIN
PDF
/
Inventory: 8640
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material Thermoplastic

Technical

Operating Temperature -65°C~105°C
Packaging Bulk
Published 2008
Series AMPMODU Mod II
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 18
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 5A
Orientation Right Angle
Insulation Height 0.219 5.56mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Green
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.126 3.20mm
Shrouding Unshrouded
Contact Length - Mating 0.228 5.80mm
Contact Gender Male
UL Flammability Code 94V-0

Dimensions

Contact Finish Thickness - Mating 78.7μin 2.00μm
Contact Finish Thickness - Post 78.7μin 2.00μm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
