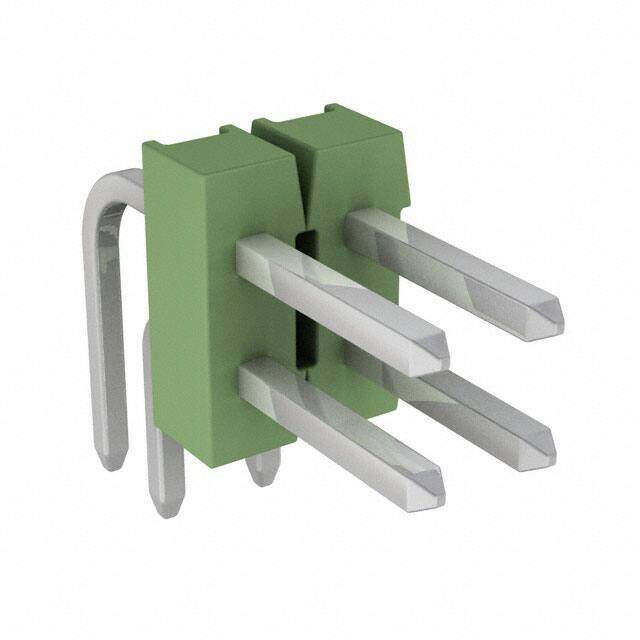

826955-2 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER R/A 4POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.43
Unit Price: USD $0.43134
≥1 USD $0.43134
≥10 USD $0.406924
≥100 USD $0.383892
≥500 USD $0.362162
≥1000 USD $0.341662
Inventory: 4925
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 78.7μin 2.00μm
Contact Finish Thickness - Mating 78.7μin 2.00μm
Plating Thickness 2μm

Technical

High Temperature Housing No
Mating Post Length 5.8mm
Contact Current Rating 5A
Number of Poles 4
ELV Compliant
Lead Length 3.19786mm
Contact Length - Mating 0.228 5.80mm
Lead Pitch 2.54mm
Shrouding Unshrouded
Contact Length - Post 0.126 3.20mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Green
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.219 5.56mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Number of Positions 4
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series AMPMODU Mod II
Published 2001
Packaging Bulk
Operating Temperature -65°C~105°C

Physical

PCB Mounting Orientation Right Angle
Housing Material PBT
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 23 Weeks
