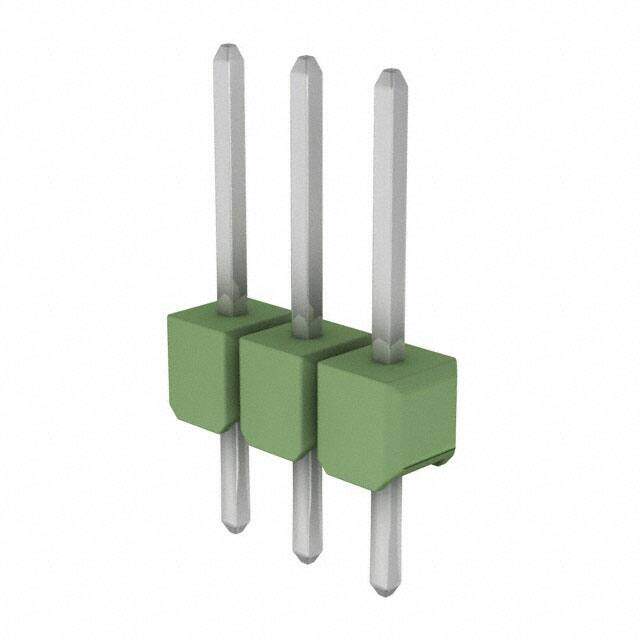

826935-3
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADR BRKWAY 3POS STR TIN
PDF
/
Inventory: 3785
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -65°C~105°C
Packaging Bulk
Published 2014
Series AMPMODU Mod II
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 3
Number of Rows 1
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 5A
Terminal Pitch 2.54mm
Insulation Height 0.110 2.79mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Green
Contact Length - Post 0.098 2.50mm
Shrouding Unshrouded
Contact Length - Mating 0.264 6.70mm
UL Flammability Code 94V-0
Overall Contact Length 0.472 12.00mm
Dimensions
Contact Finish Thickness - Mating 78.7μin 2.00μm
Contact Finish Thickness - Post 78.7μin 2.00μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
