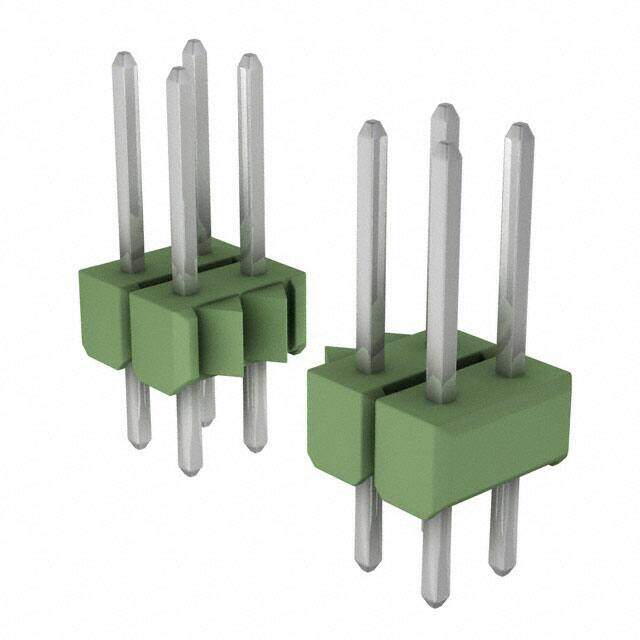

826925-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
AMP - TE CONNECTIVITY - 826925-7 - STECKER,GERADE,2X7KONT
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8096
≥1 USD $0.8096
≥10 USD $0.75592
≥100 USD $0.650496
≥500 USD $0.619062
Inventory: 5594
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 78.7μin 2.00μm
Contact Finish Thickness - Mating 78.7μin 2.00μm
Plating Thickness 2μm
Technical
High Temperature Housing No
Mating Post Length 6.7mm
Contact Current Rating 5A
Number of Poles 14
ELV Compliant
Overall Contact Length 0.500 12.70mm
Lead Length 3.19786mm
Housing Color Green
UL Flammability Code 94V-0
Contact Length - Mating 0.264 6.70mm
Lead Pitch 2.54mm
Shrouding Unshrouded
Contact Length - Post 0.126 3.20mm
Row Spacing - Mating 0.100 (2.54mm)
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.110 2.79mm
Orientation Vertical
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Gender Male
Number of Rows 2
Number of Positions 14
Connector Type Header, Breakaway
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series AMPMODU Mod II
Published 2005
Packaging Bulk
Operating Temperature -65°C~105°C
Physical
Housing Material Thermoplastic
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 23 Weeks
