826634-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

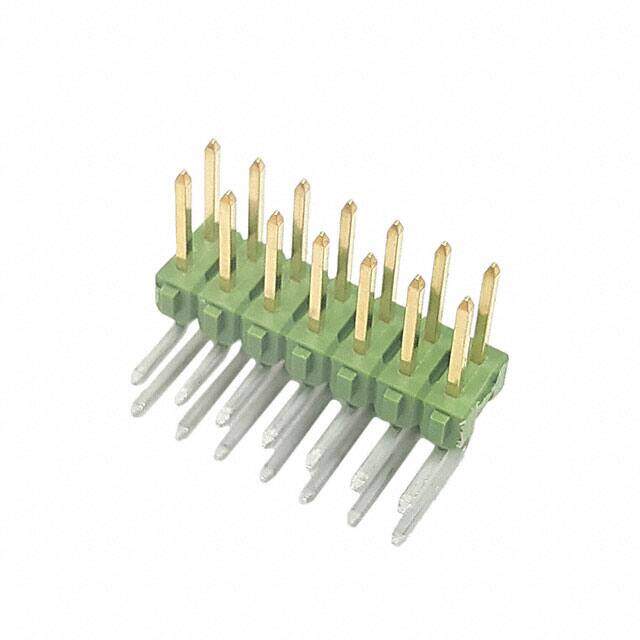

CONN HEADR 14POS DUAL R/A GOLD
PDF
/
Buying Options
Total Price: USD $1.61
Unit Price: USD $1.6104
≥1 USD $1.6104
≥10 USD $1.4696
≥100 USD $1.288522
≥500 USD $1.049629
≥1000 USD $0.941046
Inventory: 1199
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 118.1μin 3.00μm
Contact Finish Thickness - Mating 3.90μin 0.099μm
Plating Thickness 800 nm
Length 17.78mm
Technical
Keyed No
Mating Post Length 6.7mm
Contact Current Rating 5A
Dielectric Withstanding Voltage 750VAC V
Mating Contact Pitch 0.1 inch
Insulation Resistance 5000000000Ohm
Rated Current (Signal) 3A
Lead Length 3.19786mm
UL Flammability Code 94V-0
Contact Gender Male
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.264 6.70mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Unshrouded
Contact Length - Post 0.126 3.20mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Green
Pitch - Mating 0.100 2.54mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.219 5.56mm
Depth 13.34mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Number of Rows 2
Number of Positions 14
Connector Type Header, Breakaway
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series AMPMODU Mod II
Published 1997
Packaging Bulk
Operating Temperature -65°C~105°C
Physical
PCB Mounting Orientation Right Angle
Housing Material PBT
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Tin, Gold
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 23 Weeks
Alternative Model
