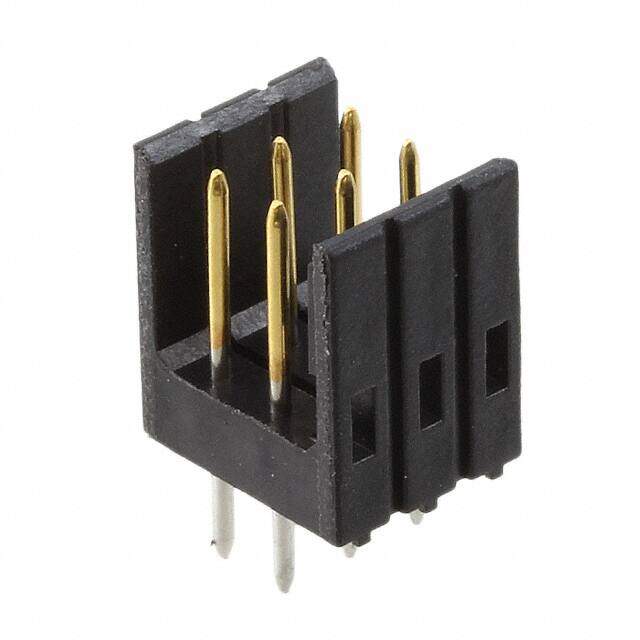

826469-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 2X03P HDR SHROUDED
PDF
/
Buying Options
Total Price: USD $1.4
Unit Price: USD $1.3992
≥1 USD $1.3992
≥10 USD $1.28304
≥100 USD $1.125168
≥500 USD $0.916564
≥1000 USD $0.821753
≥3000 USD $0.78232
Inventory: 1309
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 118.1μin 3.00μm
Contact Finish Thickness - Mating 3.90μin 0.099μm
Plating Thickness 5μm
Length 7.62mm
Technical
Contact Mating Length 6.7056mm
High Speed Serial Data Connector No
High Temperature Housing Yes
Mating Post Length 6.7mm
Number of Poles 6
Working Voltage 250V
Lead Length 3.19786mm
Housing Color Black
UL Flammability Code 94V-0
Contact Gender Male
Contact Finish - Post Tin
Lead Pitch 2.54mm
Shrouding Shrouded - 2 Wall
Contact Length - Post 0.126 3.20mm
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency CSA
Voltage - Rated AC 250V
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.394 10.00mm
Depth 8.6mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 250V
Fastening Type Latch Holder
Number of Rows 2
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series AMPMODU Mod II
Published 1998
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
PCB Mounting Orientation Vertical
Housing Material Polyester
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 21 Weeks
