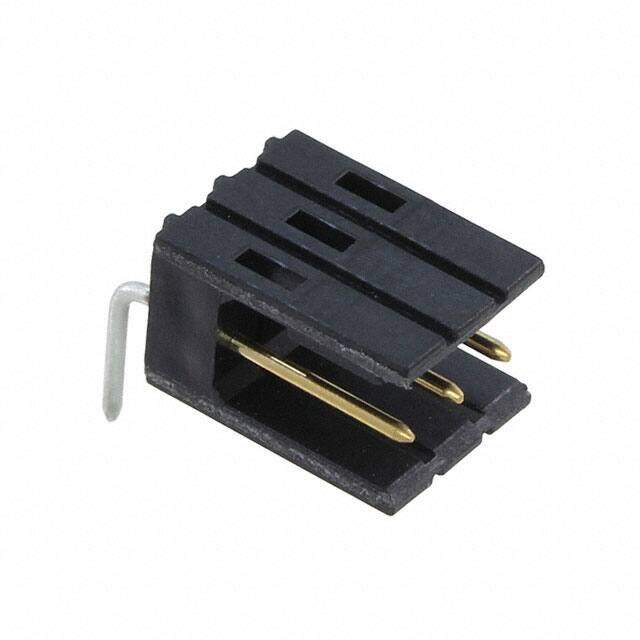

826468-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 3POS 2.54MM
PDF
/
Buying Options
Total Price: USD $1.05
Unit Price: USD $1.0472
≥1 USD $1.0472
≥10 USD $0.97856
≥100 USD $0.814563
≥500 USD $0.664391
≥1000 USD $0.600688
≥3000 USD $0.5632
Inventory: 2527
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Housing Material Polyester
PCB Mounting Orientation Right Angle
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2009
Series AMPMODU Mod II
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Rows 1
Fastening Type Latch Holder
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Right Angle
Depth 11.5mm
Insulation Height 0.236 6.00mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Voltage - Rated AC 250V
Reliability COMMERCIAL
Approval Agency CSA
Contact Length - Post 0.126 3.20mm
Shrouding Shrouded - 2 Wall
Number Of PCB Rows 1
Lead Pitch 2.54mm
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Contact Gender Male
UL Flammability Code 94V-0
Housing Color Black
Lead Length 3.19786mm
Working Voltage 250V
Rated Current (Signal) 3A
Insulation Resistance 5000000000Ohm
Row Spacing 2.54 mm
ELV Compliant
Polarization Key POLARIZED HOUSING
Number of Poles 3
Mating Post Length 6.7mm
High Temperature Housing Yes
High Speed Serial Data Connector No
Dimensions
Length 7.62mm
Plating Thickness 5μm
Contact Finish Thickness - Mating 3.90μin 0.099μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Alternative Model
