826467-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

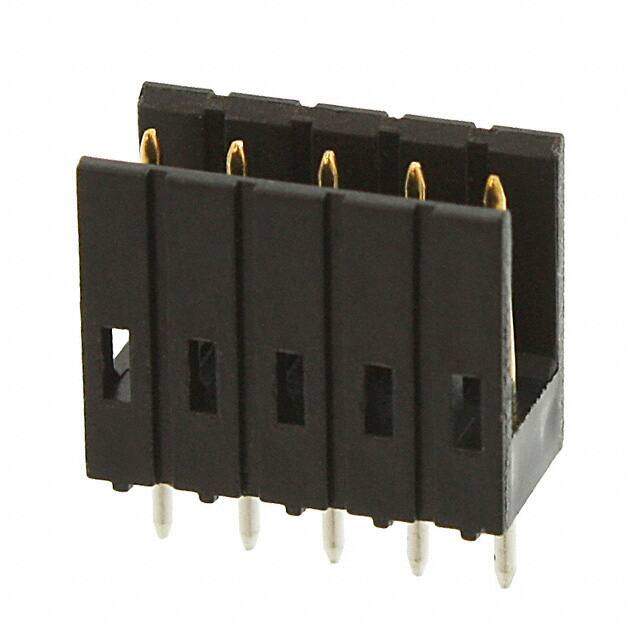

Headers & Wire Housings 1X05P HDR SHROUDED
PDF
/
Buying Options
Total Price: USD $0.89
Unit Price: USD $0.8888
≥1 USD $0.8888
≥10 USD $0.83336
≥100 USD $0.693792
≥500 USD $0.682396
Inventory: 3239
Minimum: 1
-
+
Technical Details
Physical
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Housing Material Polyester
PCB Mounting Orientation Vertical
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2008
Series AMPMODU Mod II
Pbfree Code yes
High Speed Serial Data Connector No
High Temperature Housing Yes
Mating Post Length 6.7mm
Number of Poles 5
Polarization Key POLARIZED HOUSING
ELV Compliant
Row Spacing 2.54 mm
Working Voltage 250V
Lead Length 3.19786mm
Housing Color Black
UL Flammability Code 94V-0
Contact Gender Male
Body Breadth 0.236 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Lead Pitch 2.54mm
Number Of PCB Rows 1
Shrouding Shrouded - 2 Wall
Contact Length - Post 0.126 3.20mm
Approval Agency CSA
Reliability COMMERCIAL
Voltage - Rated AC 250V
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.394 10.00mm
Depth 6mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Holder
Number of Rows 1
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 20 Weeks
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 118.1μin 3.00μm
Contact Finish Thickness - Mating 3.90μin 0.099μm
Plating Thickness 3μm
Length 12.7mm
