825457-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

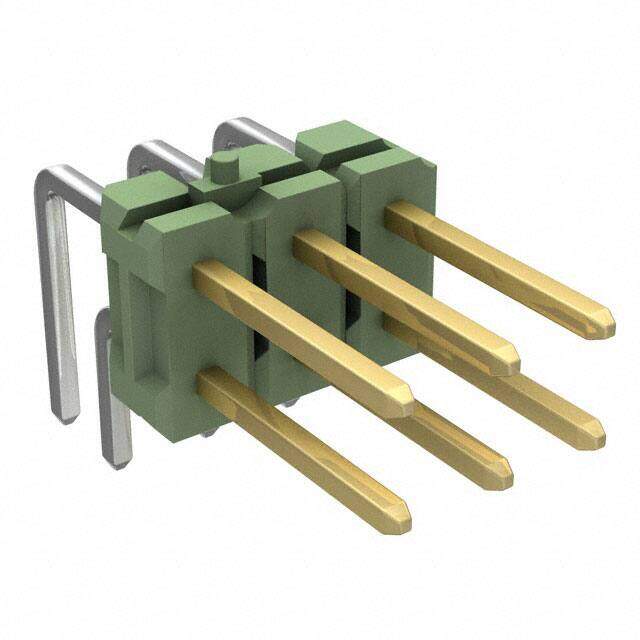

AMP FROM TE CONNECTIVITY 825457-3 Wire-To-Board Connector, AMPMODU MOD II Series, 6 Contacts, Header, 2.54 mm, Through Hole, 2 Rows
PDF
/
Buying Options
Total Price: USD $1.13
Unit Price: USD $1.1264
≥1 USD $1.1264
≥10 USD $1.05248
≥100 USD $0.797685
≥500 USD $0.714498
≥1000 USD $0.645982
≥3000 USD $0.605669
Inventory: 5122
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 62μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Contact Finish Thickness - Mating 3.90μin 0.099μm
Plating Thickness 5μm
Length 10.16mm
Technical
High Speed Serial Data Connector No
Input Current 3A
Mating Post Length 6.7mm
Number of Poles 3
Dielectric Withstanding Voltage 750VAC V
ELV Compliant
Mating Contact Pitch 0.1 inch
Insulation Resistance 5000000000Ohm
Lead Length 3.19786mm
UL Flammability Code 94V-0
Contact Gender Male
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.264 6.70mm
Contact Finish - Post Tin
Lead Pitch 2.54mm
Number Of PCB Rows 2
Shrouding Unshrouded
Contact Length - Post 0.126 3.20mm
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency CSA
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Green
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.197 5.00mm
Depth 13.54mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 2
Number of Positions 6
Connector Type Header, Breakaway
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series AMPMODU Mod II
Published 1997
Packaging Bulk
Operating Temperature -65°C~105°C
Physical
PCB Mounting Orientation Right Angle
Housing Material PBT
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold, Tin
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 23 Weeks
