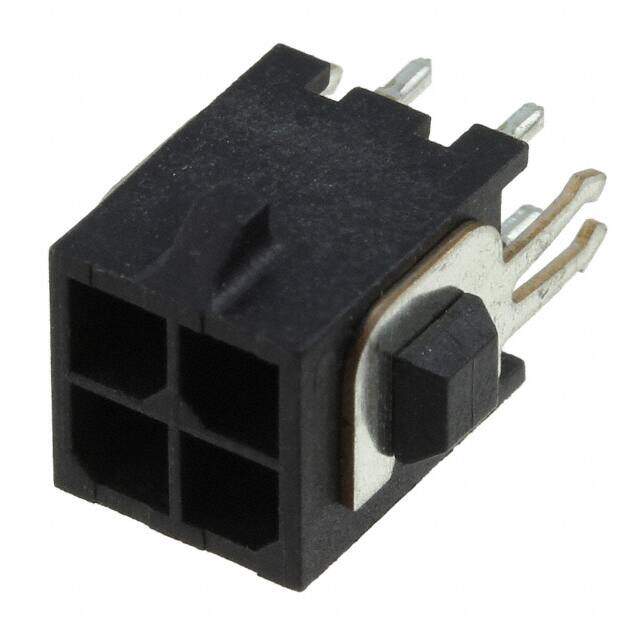

794680-4 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Pin & Socket Connectors 4POS MICRO MNL
PDF
/
Inventory: 7181
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm

Technical

ELV Non-Compliant
Lead Length 3.18mm
Housing Color Black
Contact Finish - Post Tin-Lead
Number of Contacts 4
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.125 3.18mm
Row Spacing - Mating 0.118 (3.00mm)
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.364 9.25mm
Orientation Straight
Pitch 3mm
Current Rating (Amps) Varies by WireGAuge
Contact Type Male Pin
Contact Finish - Mating Tin-Lead
Fastening Type Locking Ramp
Voltage - Rated 250V
Number of Rows 2
Applications General Purpose
Color Black
Number of Positions 4
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Board Lock
Series Micro MATE-N-LOK
Published 2009
Packaging Tray
Operating Temperature -40°C~105°C

Physical

Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass

Supply Chain

Factory Lead Time 11 Weeks
