794638-4
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

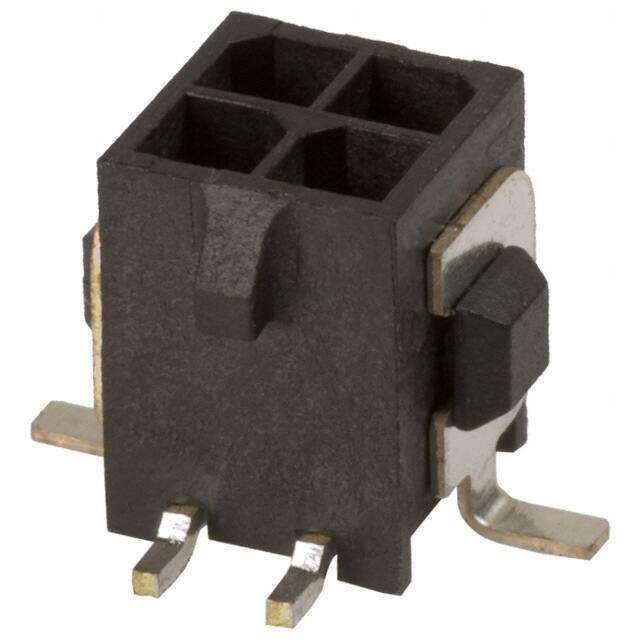

CONN HEADER 4POS DUAL GOLD SMD
PDF
/
Inventory: 958
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Length 10mm
Technical
PCB Contact Row Spacing 9.398 mm
Number of Ports 1
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 250V
ELV Non-Compliant
Empty Shell NO
Housing Color Black
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin-Lead
Lead Pitch 3mm
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.118 (3.00mm)
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.118 3.00mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.364 9.25mm
Depth 10.94mm
Orientation Straight
Total Number of Contacts 4
Current Rating (Amps) Varies by WireGAuge
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Locking Ramp
Gender Male
Number of Rows 2
Applications General Purpose
Number of Positions 4
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Solder Retention
JESD-609 Code e0
Series Micro MATE-N-LOK
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
