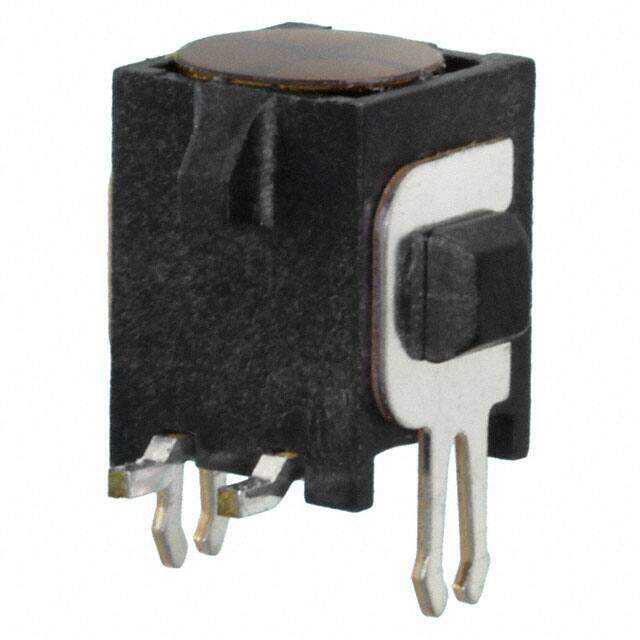

794634-4
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Pin & Socket Connectors 4POS MICRO MNL
PDF
/
Inventory: 3129
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Plating Thickness 15μin
Width 6.86mm
Technical
Durability 75 Cycles
PCB Contact Row Spacing 9.398 mm
Dielectric Withstanding Voltage 1500VAC V
Polarization Key POLARIZED HOUSING
ELV Non-Compliant
Mating Contact Pitch 0.118 inch
Insulation Resistance 100000000Ohm
Empty Shell NO
Housing Color Black
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin-Lead
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.118 (3.00mm)
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.118 3.00mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.364 9.25mm
Orientation Vertical
Total Number of Contacts 4
Current Rating (Amps) Varies by WireGAuge
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Locking Ramp
Voltage - Rated 250V
Number of Rows 2
Applications General Purpose
Number of Positions 4
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Board Lock, Pick and Place
JESD-609 Code e0
Series Micro MATE-N-LOK
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Brass
Supply Chain
Factory Lead Time 10 Weeks
Alternative Model
