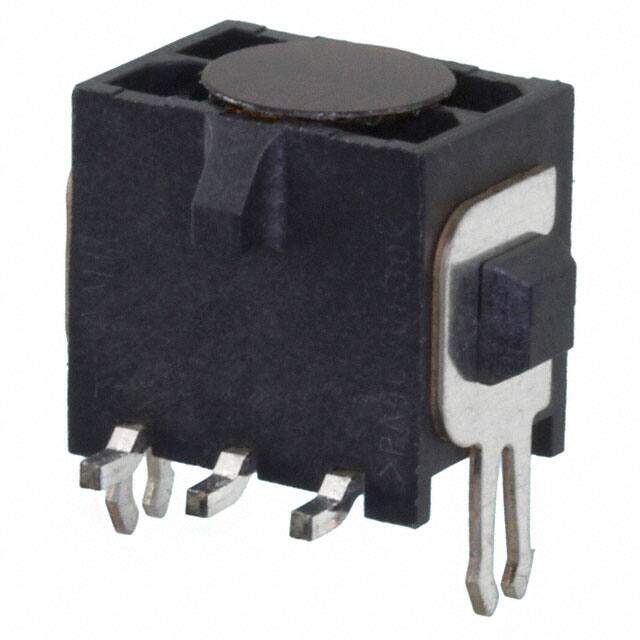

794633-6
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Pin & Socket Connectors 6POS MICRO MNL ASSY VRT SMT
PDF
/
Inventory: 3857
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Brass
Contact Plating Lead, Tin
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2010
Series Micro MATE-N-LOK
JESD-609 Code e0
Feature Board Lock, Pick and Place
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 6
Applications General Purpose
Number of Rows 2
Voltage - Rated 250V
Fastening Type Locking Ramp
Contact Finish - Mating Tin-Lead
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) Varies by WireGAuge
Total Number of Contacts 6
Orientation Straight
Insulation Height 0.364 9.25mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.118 (3.00mm)
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
UL Flammability Code 94V-0
Empty Shell NO
Body Depth 0.374 inch
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.118 inch
ELV Non-Compliant
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1500VAC V
PCB Contact Row Spacing 9.398 mm
Durability 30 Cycles
Dimensions
Width 6.86mm
Plating Thickness 100μin
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
