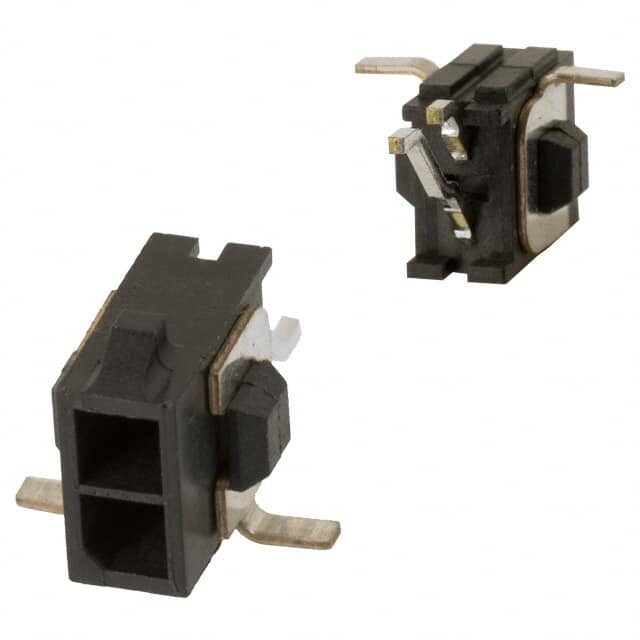

794627-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HDR 2POS DUAL R/A TIN SMD
PDF
/
Inventory: 8531
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Length 3.86mm
Technical
Number of Ports 1
Max Voltage Rating (AC) 250V
ELV Non-Compliant
Housing Color Black
Contact Finish - Post Tin-Lead
Number of Contacts 2
Lead Pitch 3mm
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.118 (3.00mm)
Insulation Color Black
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.290 7.37mm
Depth 15.63mm
Orientation Right Angle
Pitch 3mm
Current Rating (Amps) Varies by WireGAuge
Contact Type Male Pin
Contact Finish - Mating Tin-Lead
Fastening Type Locking Ramp
Voltage - Rated 250V
Gender Male
Number of Rows 2
Applications General Purpose
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 2
Connector Type Header
Termination Solder
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Solder Retention
Series Micro MATE-N-LOK
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Lead, Tin
Contact Material Brass
Supply Chain
Factory Lead Time 11 Weeks
