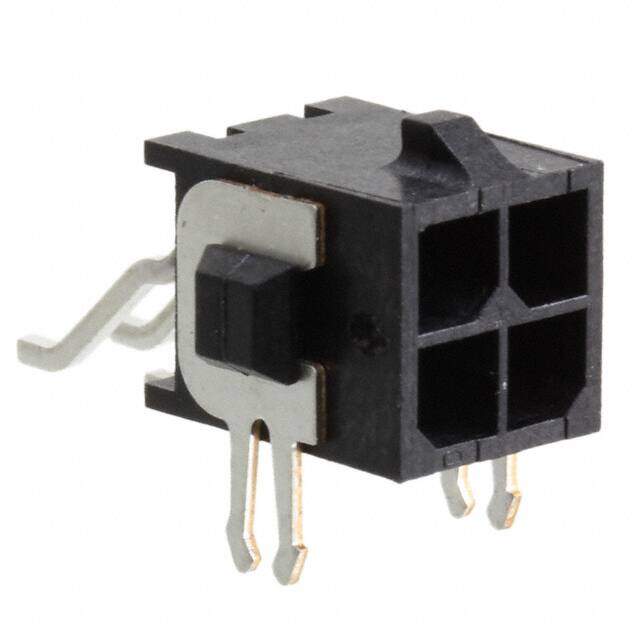

794625-4
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Pin & Socket Connectors 4POS MICRO MNL
PDF
/
Inventory: 3447
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Brass
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2008
Series Micro MATE-N-LOK
JESD-609 Code e0
Feature Board Lock
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 4
Applications General Purpose
Number of Rows 2
Voltage - Rated 250V
Fastening Type Locking Ramp
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) Varies by WireGAuge
Total Number of Contacts 4
Orientation Right Angle
Insulation Height 0.290 7.37mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.118 3.00mm
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.118 (3.00mm)
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin-Lead
PCB Contact Pattern RECTANGULAR
Housing Color Black
Empty Shell NO
Body Depth 0.615 inch
Insulation Resistance 100000000Ohm
Mating Contact Pitch 0.118 inch
ELV Non-Compliant
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1500VAC V
Durability 75 Cycles
Dimensions
Plating Thickness 15μin
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
