776087-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

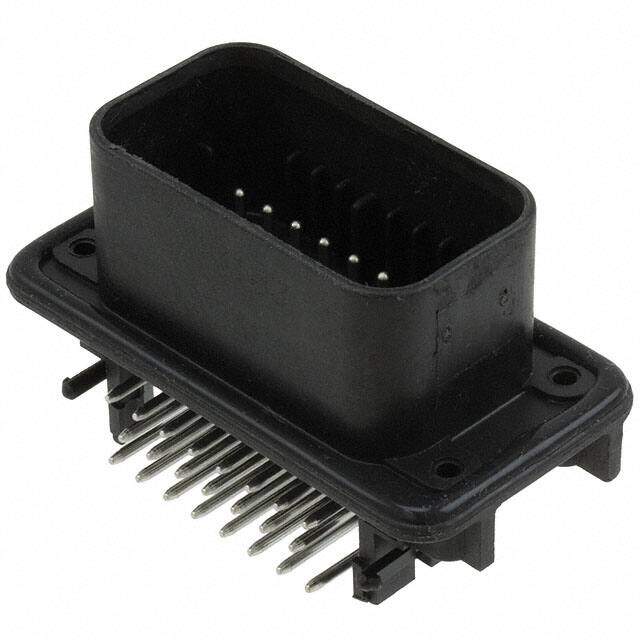

Automotive Connectors 23 POS AMPSEAL HDR S
PDF
/
Buying Options
Total Price: USD $12.41
Unit Price: USD $12.408
≥1 USD $12.408
≥10 USD $12.15104
≥100 USD $10.147368
≥500 USD $8.790109
≥1000 USD $8.725464
Inventory: 1094
Minimum: 1
-
+
Technical Details
Technical
Lead Pitch 4mm
PCB Contact Pattern STAGGERED
UL Flammability Code 94V-0
Housing Color Black
Empty Shell NO
Operating Supply Voltage 250V
ELV Compliant
Max Voltage Rating (AC) 250V
Polarization Key POLARIZED HOUSING
Number of Ports 1
Circuit Application Power
Number Of PCB Rows 3
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.157 (4.00mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.157 4.00mm
Current Rating 17A
Number of Positions Loaded All
Style Board to Cable/Wire
Depth 37.9mm
Shielding Unshielded
Orientation Right Angle
Total Number of Contacts 23
Current Rating (Amps) Varies by WireGAuge
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Additional Feature POLARIZED
Voltage - Rated 250VAC
Gender Male
Number of Rows 3
Applications Automotive, Industrial
Number of Positions 23
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, Sealed
JESD-609 Code e3
Series AMPSEAL
Published 2008
Packaging Bulk
Operating Temperature -40°C~105°C
Dimensions
Length 60.8mm
Width 37.9mm
PCB Thickness 1.5748mm
Tab Thickness 1.3mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Physical
Housing Material Polybutylene
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Circular
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Panel, Through Hole
Contact Material Brass
