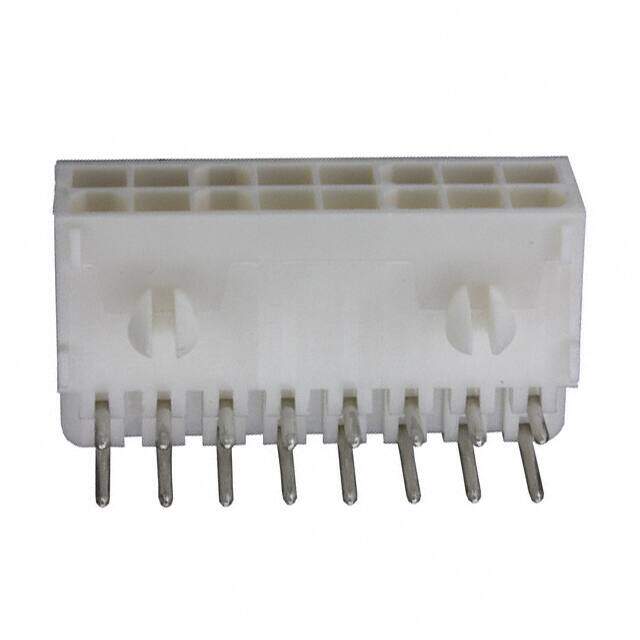

770974-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HDR 16POS R/A DUAL .163 AU
PDF
/
Inventory: 8535
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Circular
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
PCB Mounting Orientation Right Angle
Technical
Operating Temperature -20°C~105°C
Packaging Bulk
Published 2005
Series Mini-Universal MATE-N-LOK
JESD-609 Code e0
Feature Board Lock
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Applications General Purpose
Number of Rows 2
Voltage - Rated 600VAC
HTS Code 8536.69.40.30
Fastening Type Locking Ramp
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) Varies by WireGAuge
Orientation Right Angle
Insulation Height 0.386 9.80mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 9.5A
Pitch - Mating 0.163 4.14mm
Approval Agency CSA
Row Spacing - Mating 0.163 (4.14mm)
Contact Length - Post 0.145 3.68mm
Shrouding Shrouded - 4 Wall
Number of Contacts 16
Contact Finish - Post Tin-Lead
Contact Gender Male
UL Flammability Code 94V-0
Housing Color White
Empty Shell NO
ELV Non-Compliant
Max Voltage Rating (AC) 600V
Number of Ports 1
Max Voltage Rating (DC) 600.6kV
Contact Current Rating 9.5A
Circuit Application Power
VDE Tested No
Dimensions
Height 13.49mm
Length 34.7mm
Width 9.8mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
