770186-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

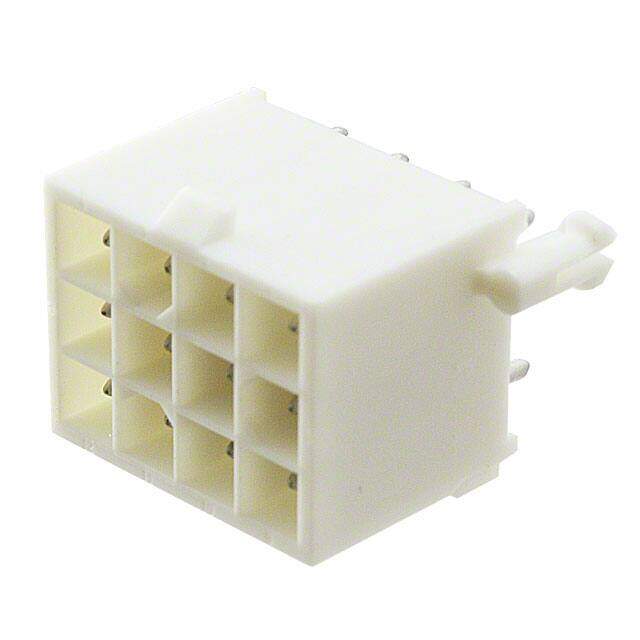

CONN HEADER 12POS VERT .163 TIN
PDF
/
Buying Options
Total Price: USD $2.09
Unit Price: USD $2.0856
≥1 USD $2.0856
≥10 USD $1.86032
≥100 USD $1.680668
≥500 USD $1.520174
≥1000 USD $1.359662
Inventory: 1044
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 150.0μin 3.81μm
Contact Finish Thickness - Mating 150.0μin 3.81μm
Plating Thickness 150μm
Width 13.97mm
Length 18.11mm
Height 13.49mm
Technical
VDE Tested Yes
Contact Retention Without
Number of Signal Positions 0
Circuit Application Power
Contact Current Rating 9.5A
Sealable No
Insertion Force-Max 6.672 N
Number of Ports 1
Max Voltage Rating (AC) 600V
ELV Non-Compliant
Operating Supply Voltage 600V
Empty Shell NO
Contact Gender Male
Number of Contacts 12
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.175 4.45mm
Row Spacing - Mating 0.163 (4.14mm)
Approval Agency CSA
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color White
Pitch - Mating 0.163 4.14mm
Current Rating 9.5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.531 13.50mm
Depth 16.03mm
Orientation Vertical
Current Rating (Amps) Varies by WireGAuge
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin-Lead
Fastening Type Locking Ramp
Voltage - Rated 600VAC
Number of Rows 3
Applications General Purpose
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
Feature Board Lock
JESD-609 Code e0
Series Mini-Universal MATE-N-LOK
Published 2005
Packaging Bulk
Operating Temperature -20°C~85°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass
