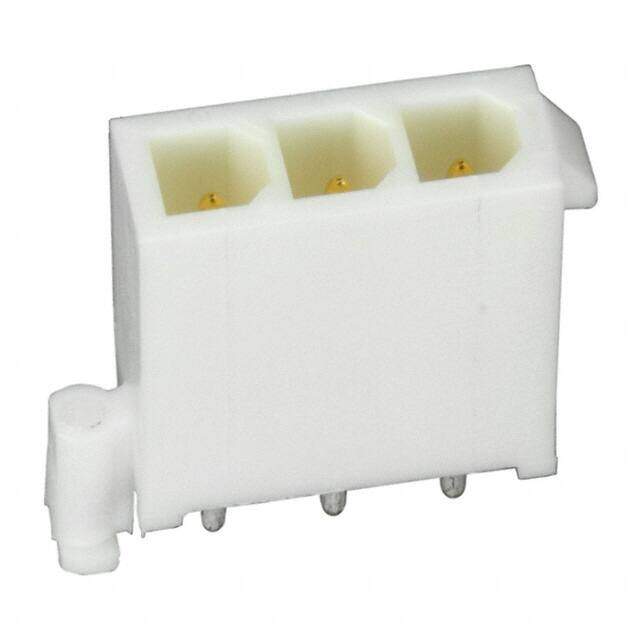

770170-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 3POS VERT .163 AU
PDF
/
Buying Options
Total Price: USD $2
Unit Price: USD $1.9976
≥1 USD $1.9976
≥10 USD $1.77848
≥100 USD $1.607144
≥500 USD $1.300156
≥1000 USD $1.146666
Inventory: 154
Minimum: 1
-
+
Technical Details
Technical
Pbfree Code no
Feature Board Lock
JESD-609 Code e0
Series Mini-Universal MATE-N-LOK
Published 2008
Packaging Bulk
Operating Temperature -20°C~105°C
VDE Tested Yes
Contact Retention Without
Number of Signal Positions 0
Circuit Application Power
Contact Current Rating 9.5A
Sealable No
Withdrawl Force-Min .6672 N
Insertion Force-Max 6.672 N
Max Voltage Rating (AC) 600V
ELV Non-Compliant
Operating Supply Voltage 600V
Empty Shell NO
Housing Color White
Contact Gender Male
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish - Post Tin-Lead
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.175 4.45mm
Approval Agency CSA
Reliability COMMERCIAL
Number of Conductors ONE
Pitch - Mating 0.163 4.14mm
Current Rating 9.5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.531 13.50mm
Depth 6.35mm
Orientation Vertical
Current Rating (Amps) Varies by WireGAuge
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Locking Ramp
Voltage - Rated 600VAC
Number of Rows 1
Applications General Purpose
Connector Type Header
Termination Solder
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Circular
Mounting Type Through Hole
Mount Cable, Through Hole
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 12 Weeks
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 150.0μin 3.81μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 760 nm
Width 13.49mm
Length 13.97mm
Height 5.59mm
