7-215464-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

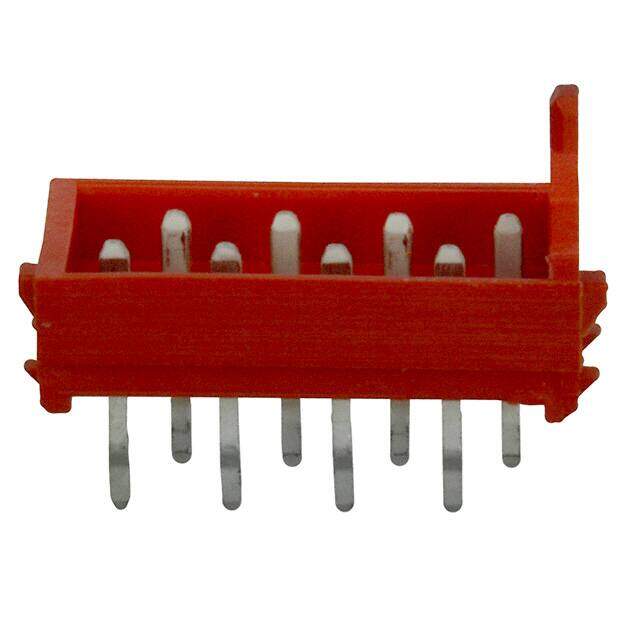

CONN HEADER 8POS VERT DL TIN
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.8976
≥1 USD $0.8976
≥10 USD $0.8184
≥100 USD $0.729432
Inventory: 1144
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.6mm
Contact Finish Thickness - Mating 118.1μin 3.00μm
Plating Thickness 5μm
Width 13.4mm
Length 8.89mm
Height 6.9mm
Technical
Mating Connector Lock Without
Contact Current Rating 1.5A
ELV Compliant
Insulation Resistance 1GOhm
Contact Resistance 10mOhm
Operating Supply Voltage 100V
Lead Length 3.0988mm
Housing Color Red
Contact Gender Male
Contact Finish - Post Tin
Number of Contacts 8
Lead Pitch 1.27mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.122 3.10mm
Row Spacing - Mating 0.100 (2.54mm)
Voltage - Rated AC 230V
Insulation Color Red
Pitch - Mating 0.100 2.54mm
Current Rating 1.5A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.142 3.60mm
Depth 5mm
Orientation Vertical
Pitch 1.27mm
Current Rating (Amps) 1.5A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Latch Lock
Voltage - Rated 230V
Gender Male
Number of Rows 2
Applications General Purpose
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 8
Connector Type Header
Termination Press-Fit, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Micro-MaTch
Published 2004
Packaging Tape & Box (TB)
Operating Temperature -40°C~105°C
Physical
PCB Mount Retention With
PCB Mounting Orientation Vertical
Housing Material Polyester
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Rectangular
Number of Pins 8
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 4 Weeks
Alternative Model
