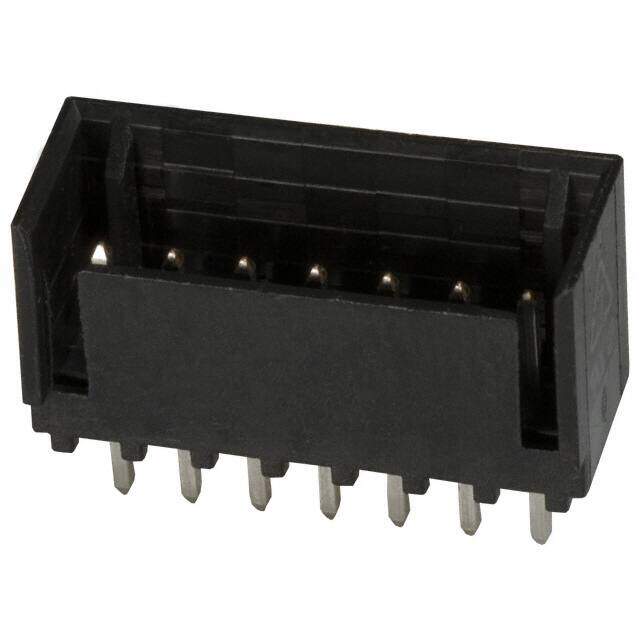

644861-7
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT .100 7POS TIN
PDF
/
Inventory: 5763
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
ELV Non-Compliant
Overall Contact Length 0.440 11.18mm
Lead Length 3.56mm
Housing Color White
Contact Gender Male
Contact Length - Mating 0.200 5.08mm
Contact Finish - Post Tin-Lead
Number of Contacts 7
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.140 3.56mm
Voltage - Rated AC 250V
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.410 10.41mm
Orientation Vertical
Pitch 2.54mm
Current Rating (Amps) Varies by WireGAuge
Contact Type Male Pin
Contact Finish - Mating Tin-Lead
Fastening Type Friction Lock
Voltage - Rated 250VAC
Gender Male
Number of Rows 1
Applications General Purpose
Color Black
Number of Positions 7
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series MTA-100
Published 2013
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
PCB Mounting Orientation Vertical
Housing Material Polyester
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
