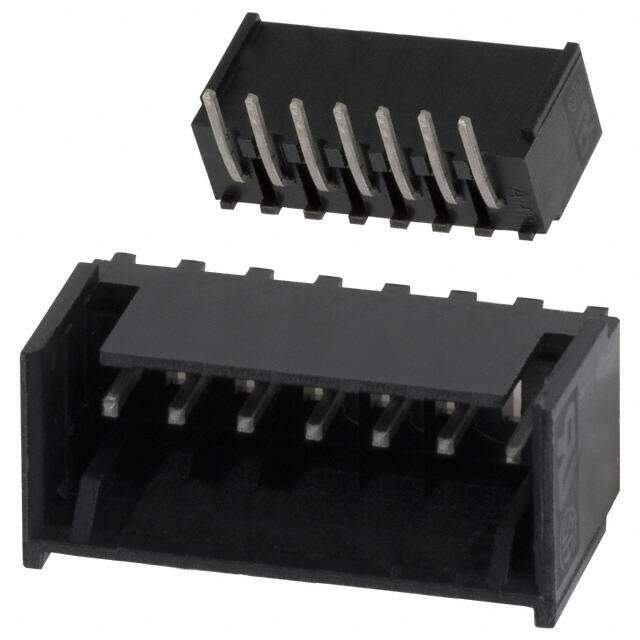

644803-7
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER RTANG .100 7POS TIN
PDF
/
Inventory: 3239
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyester
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2008
Series MTA-100
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 7
Applications General Purpose
Number of Rows 1
Voltage - Rated 250VAC
Fastening Type Friction Lock
Contact Finish - Mating Tin-Lead
Contact Type Male Pin
Current Rating (Amps) Varies by WireGAuge
Orientation Right Angle
Terminal Pitch 2.54mm
Insulation Height 0.343 8.71mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 7A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Voltage - Rated AC 250V
Reliability COMMERCIAL
Contact Length - Post 0.130 3.30mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Contact Length - Mating 0.200 5.08mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.343 inch
Contact Gender Male
Housing Color White
Contact Resistance 6mOhm
Insulation Resistance 5000000000Ohm
ELV Non-Compliant
Max Voltage Rating (AC) 250V
Durability 25 Cycles
Insertion Force-Max 8.896 N
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
