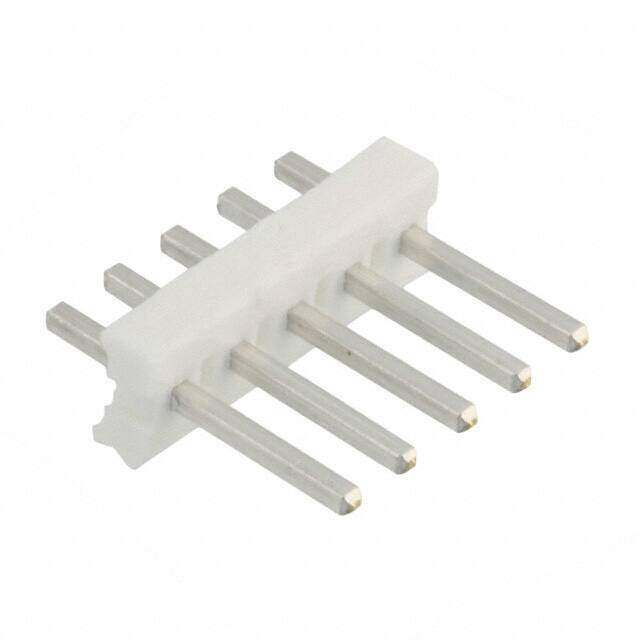

644749-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 5POS .156 STR TIN
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.6512
≥1 USD $0.6512
≥10 USD $0.55352
≥100 USD $0.496672
≥500 USD $0.406366
≥1000 USD $0.361205
≥3000 USD $0.316061
Inventory: 974
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic, Glass Filled
Housing Material Polyester
PCB Mounting Orientation Vertical
Underplate Material Nickel
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2008
Series MTA-156
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 5
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Natural
Applications General Purpose, Industrial
Number of Rows 1
Voltage - Rated 600VAC
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) Varies by WireGAuge
Pitch 3.9624mm
Orientation Vertical
Depth 6.35mm
Insulation Height 0.125 3.18mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 7A
Pitch - Mating 0.156 3.96mm
Insulation Color Natural
Approval Agency CSA
Contact Length - Post 0.175 4.45mm
Shrouding Unshrouded
Number of Contacts 5
Contact Finish - Post Tin
Contact Length - Mating 0.400 10.16mm
Contact Gender Male
Housing Color White, Natural
Lead Length 4.45mm
Operating Supply Voltage 600V
Overall Contact Length 0.700 17.78mm
Contact Resistance 3mOhm
Max Voltage Rating (AC) 600V
Plating Tin
Sealable No
Contact Current Rating 7A
Circuit Application Power
Number of Power Positions 5
Number of Signal Positions 0
Mating Post Length 10.16mm
Contact Retention Without
Dimensions
Height 13.335mm
Length 19.81mm
Plating Thickness 2.54μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
