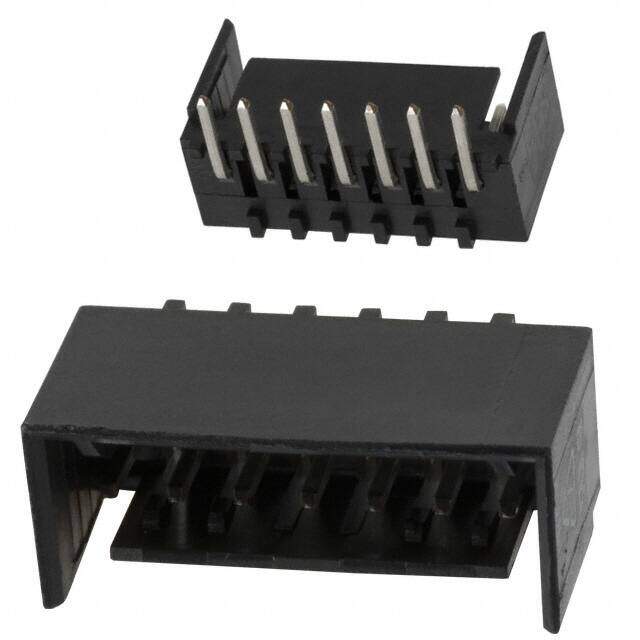

644488-7
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER RTANG .100 7POS TIN
PDF
/
Inventory: 976
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.036 inch
Technical
Polarization Key POLARIZING PEG
Max Voltage Rating (AC) 250V
ELV Non-Compliant
Insulation Resistance 5000000000Ohm
Contact Resistance 6mOhm
Housing Color White
Contact Gender Male
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.200 5.08mm
Lead Pitch 2.54mm
Number Of PCB Rows 1
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.130 3.30mm
Reliability COMMERCIAL
Voltage - Rated AC 250V
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.343 8.71mm
Orientation Right Angle
Current Rating (Amps) Varies by WireGAuge
Contact Type Male Pin
Contact Finish - Mating Tin-Lead
Fastening Type Friction Lock
Voltage - Rated 250VAC
Number of Rows 1
Applications General Purpose
Number of Positions 7
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series MTA-100
Published 2008
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
