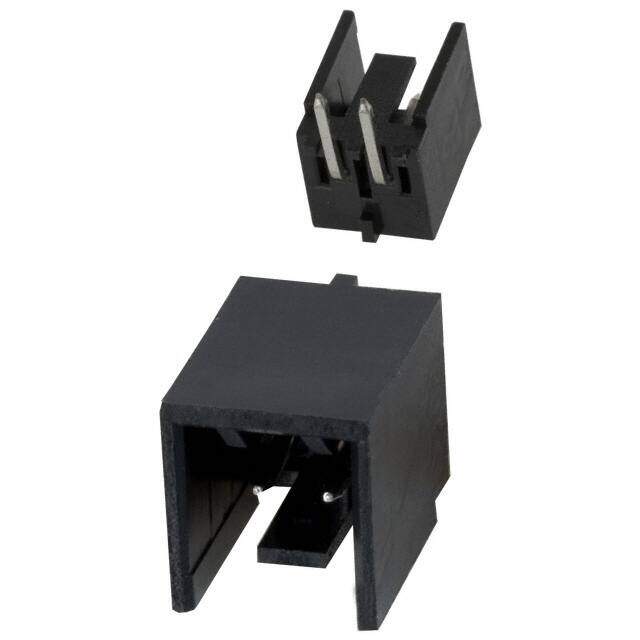

644488-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER RTANG .100 2POS TIN
PDF
/
Inventory: 9585
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.036 inch
Technical
Dielectric Withstanding Voltage 750VAC V
Polarization Key POLARIZING PEG
Max Voltage Rating (AC) 250V
ELV Non-Compliant
Insulation Resistance 5000000000Ohm
Contact Resistance 6mOhm
Lead Length 3.3mm
Housing Color White
Contact Gender Male
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.200 5.08mm
Lead Pitch 2.54mm
Number Of PCB Rows 1
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.130 3.30mm
Reliability COMMERCIAL
Voltage - Rated AC 250V
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.343 8.71mm
Orientation Right Angle
Current Rating (Amps) Varies by WireGAuge
Contact Type Male Pin
Contact Finish - Mating Tin-Lead
Fastening Type Friction Lock
Voltage - Rated 250VAC
Number of Rows 1
Applications General Purpose
Number of Positions 2
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series MTA-100
Published 2008
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
PCB Mounting Orientation Right Angle
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
