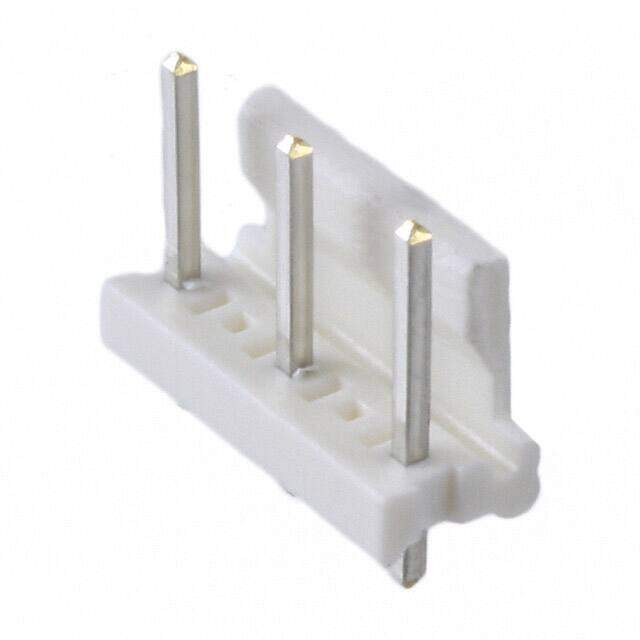

643495-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 5POS .156 VERT TIN
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.9416
≥1 USD $0.9416
≥10 USD $0.88352
≥100 USD $0.760408
≥500 USD $0.670014
≥1000 USD $0.600134
≥3000 USD $0.54259
Inventory: 792
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 3.48mm
Plating Thickness 2.54μm
Length 19.81mm
Height 10.8mm
Technical
Contact Retention Without
Mating Post Length 10.16mm
Number of Signal Positions 0
Circuit Application Power
Contact Current Rating 7A
Sealable No
Max Voltage Rating (AC) 600V
ELV Compliant
Overall Contact Length 0.650 16.51mm
Operating Supply Voltage 600V
Lead Length 3.18mm
Housing Color Natural
Contact Gender Male
Contact Length - Mating 0.400 10.16mm
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.125 3.18mm
Approval Agency CSA
Voltage - Rated AC 600V
Pitch - Mating 0.156 3.96mm
Current Rating 7A
Number of Positions Loaded 3
Style Board to Cable/Wire
Insulation Height 0.425 10.80mm
Depth 7.62mm
Orientation Vertical
Current Rating (Amps) Varies by WireGAuge
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Friction Lock
Voltage - Rated 600VAC
Number of Rows 1
Applications General Purpose, Industrial
Number of Positions 5
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series MTA-156
Published 2009
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Underplate Material Nickel
Housing Material Polyester
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 14 Weeks
Alternative Model
