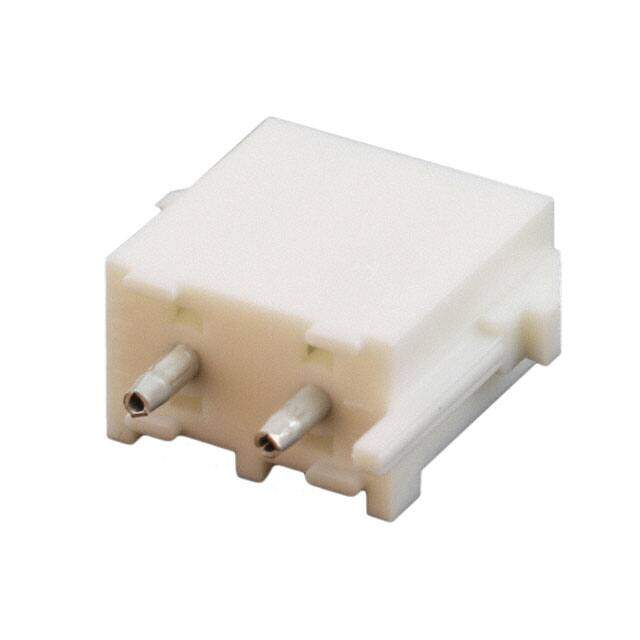

641964-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 2POS VERT UMNL WHITE
PDF
/
Buying Options
Total Price: USD $2.31
Unit Price: USD $2.3056
≥1 USD $2.3056
≥10 USD $2.05392
≥100 USD $1.855656
≥500 USD $1.501201
≥1000 USD $1.323978
Inventory: 514
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 3.12mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
VDE Tested Yes
Contact Retention Without
Number of Signal Positions 0
Circuit Application Power
Contact Current Rating 12A
Sealable No
Max Voltage Rating (AC) 600V
ELV Compliant
Operating Supply Voltage 600V
Empty Shell NO
Contact Gender Male
Contact Finish - Post Tin
Number of Contacts 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.155 3.94mm
Approval Agency CSA
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color White
Pitch - Mating 0.250 6.35mm
Current Rating 19A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.550 13.97mm
Orientation Vertical
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Locking Ramp
Voltage - Rated 600VAC
Number of Rows 1
Applications General Purpose
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e3
Series Universal MATE-N-LOK
Published 2008
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin, Gold
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 16 Weeks
