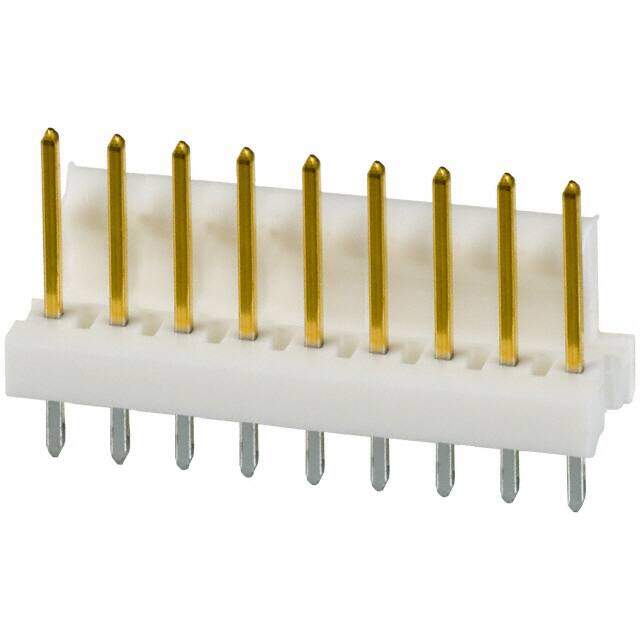

641213-9
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT .100 9POS 30AU
PDF
/
Inventory: 1863
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic
Housing Material Polyester
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2015
Series MTA-100
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 9
Applications General Purpose
Number of Rows 1
Voltage - Rated 250VAC
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) Varies by WireGAuge
Terminal Pitch 2.54mm
Insulation Height 0.305 7.75mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.100 2.54mm
Insulation Color Natural
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Contact Length - Post 0.140 3.56mm
Shrouding Shrouded - 1 Wall
Number Of PCB Rows 1
Contact Finish - Post Tin-Lead
Contact Length - Mating 0.295 7.49mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.225 inch
Contact Gender Male
Overall Contact Length 0.535 13.59mm
Contact Resistance 5mOhm
Insulation Resistance 5000000000Ohm
Dielectric Withstanding Voltage 750VAC V
Dimensions
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
