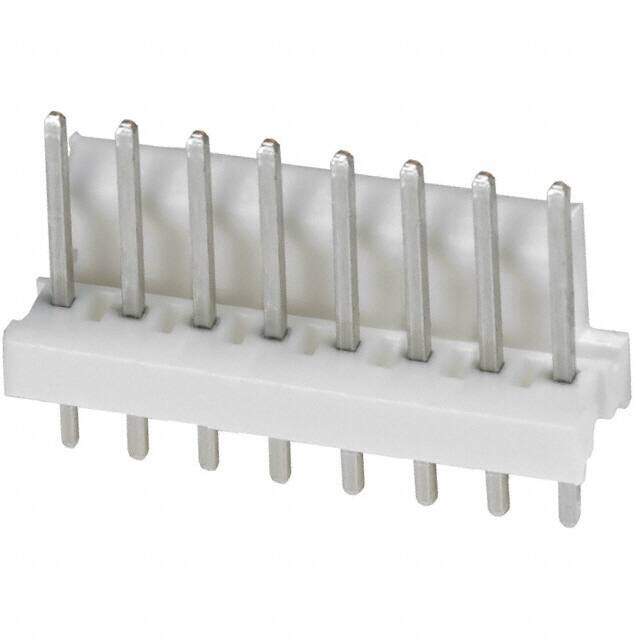

640456-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Header, Friction Lock; MTA-100; 8; 250 VAC; Polyester; Tin; Copper Alloy; Tin
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.38368
≥100 USD $0.31944
≥500 USD $0.272888
≥1000 USD $0.239184
≥3000 USD $0.211895
Inventory: 39330
Minimum: 1
-
+
Technical Details
Technical
Circuit Application Signal
Mating Retention With
Sealable No
Polarization Key POLARIZED HOUSING
Overall Contact Length 0.535 13.59mm
Operating Supply Voltage 250V
UL Flammability Code 94V-0
Body Breadth 0.225 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.295 7.49mm
Lead Pitch 2.54mm
Number Of PCB Rows 1
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.140 3.56mm
Reliability COMMERCIAL
Voltage - Rated AC 250V
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.100 2.54mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.305 7.75mm
Orientation Vertical
Current Rating (Amps) Varies by WireGAuge
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Voltage - Rated DC 250V
Fastening Type Friction Lock
Additional Feature POLARIZED
Gender Male
Number of Rows 1
Applications General Purpose
Color White
Number of Positions 8
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series MTA-100
Published 1999
Packaging Bulk
Operating Temperature -55°C~105°C
Dimensions
Height 10mm
Length 22.86mm
Width 10mm
Contact Finish Thickness - Mating 3.81μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
PCB Mount Alignment Without
Mounting Option 1 LOCKING
Housing Material Polyester
Insulation Material Thermoplastic
Contact Shape Square
Number of Pins 6
Mounting Type Through Hole
Contact Material Copper Alloy
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 9 Weeks
