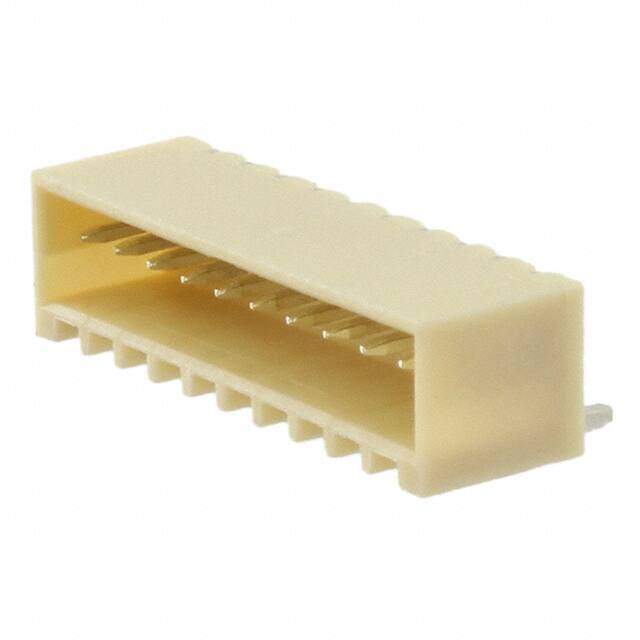

6-1775444-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 10 POS HDR R/A SMT
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.7568
≥1 USD $0.7568
≥10 USD $0.72424
≥100 USD $0.596552
≥500 USD $0.542326
Inventory: 3574
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Contact Material Brass
Contact Plating Nickel, Tin
Mount Through Hole
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Thermoplastic
Housing Material Thermoplastic
PCB Mounting Orientation Right Angle
PCB Mount Retention Without
PCB Mount Alignment Without
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Published 2010
Series High Performance Interconnect (HPI)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 10
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Natural
Applications Automotive, General Purpose, Industrial, Medical
Number of Rows 1
Voltage - Rated 250VAC
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 3A
Pitch 1.4986mm
Orientation Right Angle
Insulation Height 0.175 4.45mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.059 1.50mm
Insulation Color Natural
Shrouding Shrouded - 4 Wall
Number of Contacts 10
Contact Finish - Post Tin
Contact Length - Mating 0.106 2.70mm
Contact Gender Male
Housing Color Natural
Lead Length 2.05mm
Operating Supply Voltage 250V
ELV Compliant
Plating Tin
Wire/Cable Type Discrete
Sealable No
Contact Current Rating 3A
Mating Retention Without
Mating Post Length 2.7mm
Dimensions
Height 4.445mm
Length 16.5mm
Width 7.00024mm
Plating Thickness 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
