5794176-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

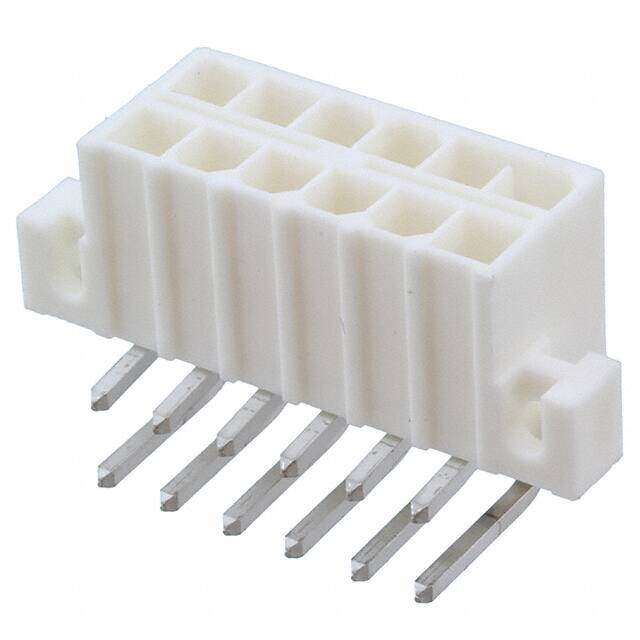

Power to the Board HEADER ASSEMBLY RA 12 CIRCUIT
PDF
/
Inventory: 4013
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Material Brass
Contact Plating Gold, Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material PBT
PCB Mounting Orientation Right Angle
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 1998
Series AMP-DUAC
JESD-609 Code e3
Feature Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 12
Number of Rows 2
Voltage - Rated 600VAC
Fastening Type Locking Ramp
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Right Angle
Depth 19.93mm
Insulation Height 0.461 11.70mm
Style Board to Board or Cable
Number of Positions Loaded 11
Current Rating 9A
Pitch - Mating 0.165 4.20mm
Insulation Color Natural
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.217 (5.51mm)
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.205 5.21mm
PCB Contact Pattern RECTANGULAR
Housing Color White
Empty Shell NO
Operating Supply Voltage 600V
Rated Current (Signal) 9A
ELV Compliant
Max Voltage Rating (AC) 600V
Polarization Key POLARIZED HOUSING
Number of Ports 1
Sealable No
Contact Current Rating 9A
Number of Power Positions 0
Contact Retention Without
Dimensions
Length 36.4mm
Plating Thickness 8.89μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
PCB Thickness 1.6002mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
