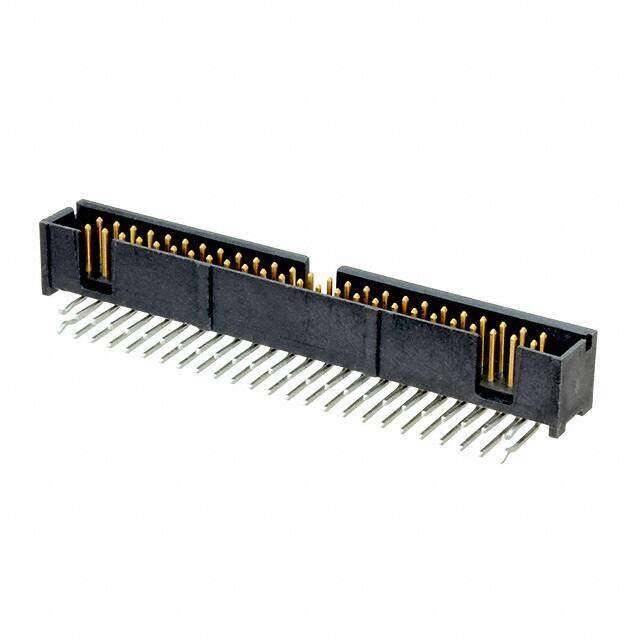

5104340-9
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings A/L LOW PRO HDR 50P RA HT
PDF
/
Buying Options
Total Price: USD $3.07
Unit Price: USD $3.0712
≥1 USD $3.0712
≥10 USD $2.725483
≥100 USD $2.431986
≥500 USD $2.236326
≥1000 USD $1.998709
≥3000 USD $1.733151
Inventory: 231
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Contact Material Brass
Contact Plating Gold, Tin
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyphthalamide (PPA), Glass Filled
Housing Material Glass
Mounting Option 1 LOCKING
PCB Mounting Orientation Right Angle
PCB Mount Retention With
Technical
Operating Temperature -65°C~105°C
Packaging Tube
Published 2008
Series AMP-Latch
Feature Keying Slot
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 50
Number of Rows 2
Additional Feature LOW PROFILE, POLARIZED
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold or Gold-Palladium
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 1A per Contact
Orientation Right Angle
Insulation Height 0.360 9.14mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.125 3.18mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.36 inch
Contact Gender Male
UL Flammability Code 94V-0
Lead Length 3.18mm
Body Depth 0.488 inch
Operating Supply Voltage 250V
Insulation Resistance 5GOhm
Mating Contact Pitch 0.1 inch
ELV Compliant
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1000VAC V
Contact Current Rating 1A
Circuit Application Signal
Mating Connector Lock Without
Shrouded End Dimension 3.81 mm
Dimensions
Height 8.813mm
Length 71.12mm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
