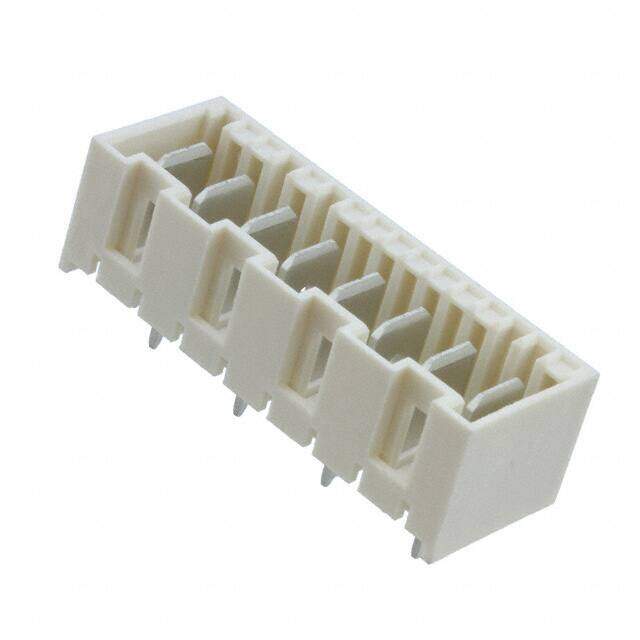

5-1971845-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 8P RAST 5 Tab Hdr T/H Vert-tin
PDF
/
Inventory: 950
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 21 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Rectangular
Insulation Material Polyamide (PA), Nylon
Material Nylon
Housing Material Nylon
PCB Mounting Orientation Vertical
Technical
Operating Temperature -40°C~120°C
Packaging Bulk
Published 2012
Feature Board Guide, Glow Wire Compliant
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 8
Max Operating Temperature 248°C
Min Operating Temperature -40°C
Color Natural
Applications General Purpose
Number of Rows 1
Voltage - Rated 250VAC
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Type Tab
Pitch 5mm
Orientation Vertical
Insulation Height 0.504 12.80mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.197 5.00mm
Insulation Color Natural
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Number of Contacts 8
Contact Finish - Post Tin
Contact Gender Male
Housing Color Natural
Operating Supply Voltage 250V
Contact Style Straight
Insulation Resistance 5GOhm
Row Spacing 5 mm
ELV Compliant
Plating Tin
Sealable No
Mating Retention With
Preloaded Yes
Dimensions
Height 12.8mm
Length 42.3mm
Contact Finish Thickness - Mating 3.79984μm
Length - Tail 3.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
