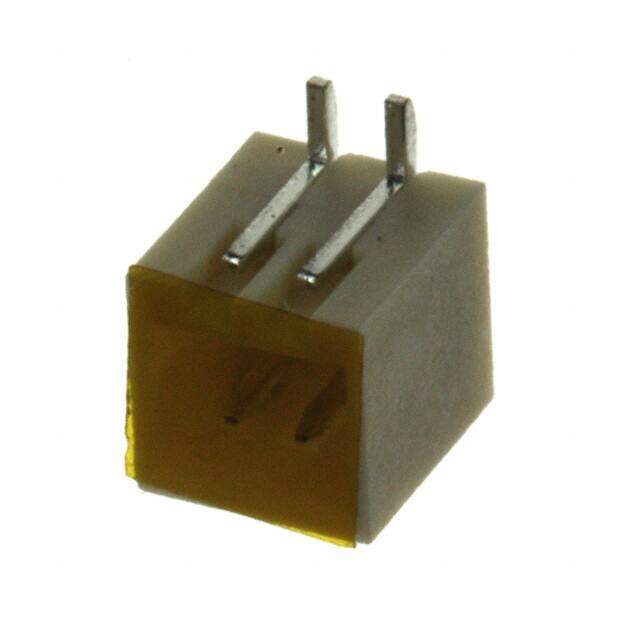

5-1775443-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 1.5MM 2POS VERT SMD
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.2992
≥1 USD $0.2992
≥10 USD $0.25432
≥100 USD $0.23144
Inventory: 5812
Minimum: 1
-
+
Technical Details
Technical
Contact Finish - Mating Tin
HTS Code 8536.69.40.40
Voltage - Rated 250VAC
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 2
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Pick and Place
Series High Performance Interconnect (HPI)
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -55°C~105°C
Mating Post Length 2.7mm
Contact Current Rating 3A
Sealable No
Wire/Cable Type Discrete
Dielectric Withstanding Voltage 500VAC V
Polarization Key POLARIZED HOUSING
ELV Compliant
Mating Contact Pitch 0.059 inch
Insulation Resistance 500000000Ohm
Contact Resistance 40mOhm
Rated Current (Signal) 3A
Operating Supply Voltage 250V
Lead Length 1.55mm
UL Flammability Code 94V-0
Contact Gender Male
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.106 2.70mm
Number Of PCB Rows 4
Shrouding Shrouded - 4 Wall
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.059 1.50mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.197 5.00mm
Orientation Vertical
Total Number of Contacts 2
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Physical
PCB Mount Retention Without
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Surface Mount
Mount Through Hole
Contact Plating Nickel, Tin
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 13 Weeks
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Plating Thickness 2.54μm
Width 5.9944mm
Length 4.5mm
Height 5mm
