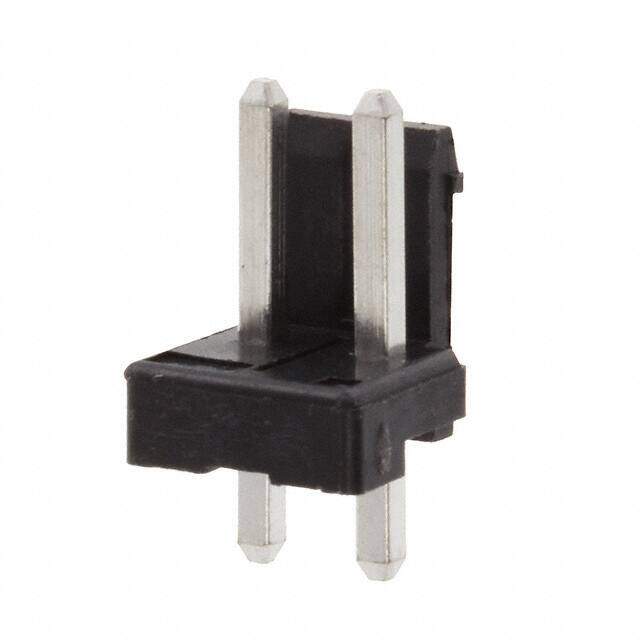

5-1123723-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 2POS 3.96MM
PDF
/
Buying Options
Total Price: USD $0.21
Unit Price: USD $0.2112
≥1 USD $0.2112
≥10 USD $0.17512
≥100 USD $0.146256
≥500 USD $0.128357
≥1000 USD $0.121625
≥3000 USD $0.10201
Inventory: 22400
Minimum: 1
-
+
Technical Details
Technical
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 2
Max Operating Temperature 105°C
Min Operating Temperature -25°C
Color Black
Applications General Purpose, Industrial, Lighting
Number of Rows 1
Voltage - Rated 250VAC
Fastening Type Friction Lock
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 7.5A
Pitch 3.9624mm
Orientation Vertical
Insulation Height 0.118 3.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 8A
Pitch - Mating 0.156 3.96mm
Insulation Color Black
Contact Length - Post 0.146 3.70mm
Shrouding Shrouded - 1 Wall
Number of Contacts 2
Contact Finish - Post Tin
Contact Length - Mating 0.303 7.70mm
Housing Color Black
Operating Supply Voltage 250V
Overall Contact Length 0.567 14.40mm
ELV Compliant
Plating Tin
Part Status Active
Series Economy Power
Published 2005
Packaging Bulk
Operating Temperature -25°C~105°C
Sealable No
Contact Current Rating 8A
Circuit Application Power
Number of Power Positions 2
Mating Post Length 7.62mm
Contact Retention Without
Physical
PCB Mounting Orientation Vertical
Housing Material PBT
Material Nylon
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 20 Weeks
Dimensions
Height 8.128mm
Length 7.86mm
Width 10.7mm
Plating Thickness 1μm
PCB Thickness 1.6002mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
