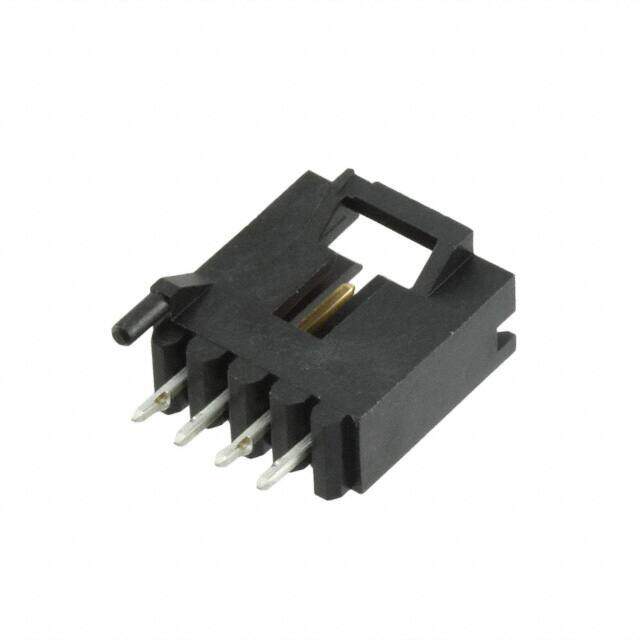

5-104809-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 4POS VERT LATCH GOLD
PDF
/
Buying Options
Total Price: USD $1.55
Unit Price: USD $1.5488
≥1 USD $1.5488
≥10 USD $1.375528
≥100 USD $1.263847
≥500 USD $1.131187
≥1000 USD $1.012475
≥3000 USD $0.907738
Inventory: 1318
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.58mm
Length - Tail 3.3mm
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Plating Thickness 2.54μm
Length 12.7mm
Height 13.79mm
Technical
Mating Post Length 5.842mm
Mating Retention With
Contact Current Rating 3A
Plating Gold
Row Spacing 2.54 mm
Insulation Resistance 5GOhm
Contact Resistance 15mOhm
Overall Contact Length 0.545 13.84mm
Housing Color Black
Contact Gender Male
Contact Length - Mating 0.230 5.84mm
Contact Finish - Post Tin
Number of Contacts 4
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.130 3.30mm
Approval Agency CSA
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.535 13.60mm
Depth 6.66mm
Orientation Vertical
Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Holder
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 4
Connector Type Header
Termination Press-Fit, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Keying Slot
Series AMPMODU MTE
Published 2008
Packaging Tube
Operating Temperature -65°C~105°C
Physical
PCB Mount Alignment Without
PCB Mount Retention With
PCB Mounting Orientation Vertical
Housing Material Thermoplastic
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Surface Mount, Through Hole
Contact Plating Gold, Tin
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Factory Lead Time 4 Weeks
