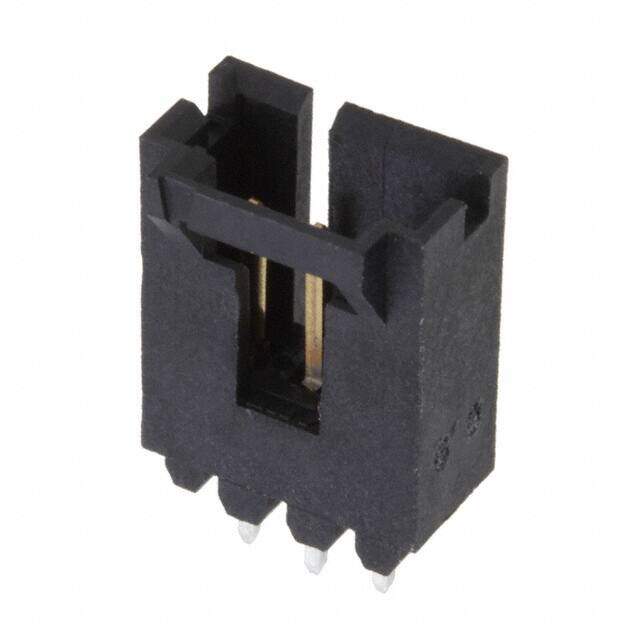

5-104362-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings LTCHNG HDR W/SWAGE 3
PDF
/
Buying Options
Total Price: USD $0.89
Unit Price: USD $0.8888
≥1 USD $0.8888
≥10 USD $0.794534
≥100 USD $0.717033
≥500 USD $0.682334
Inventory: 1255
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Material Brass
Contact Plating Gold, Tin
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic
Housing Material Thermoplastic
PCB Mount Retention With
PCB Mount Alignment Without
Technical
Operating Temperature -65°C~105°C
Packaging Tube
Published 2006
Series AMPMODU MTE
Feature Keying Slot
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit, Solder
Connector Type Header
Number of Positions 3
Color Black
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Orientation Vertical
Insulation Height 0.535 13.60mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.130 3.30mm
Shrouding Shrouded - 4 Wall
Lead Pitch 2.54mm
Number of Contacts 3
Contact Finish - Post Tin
Contact Length - Mating 0.230 5.84mm
Housing Color Black
Overall Contact Length 0.550 13.97mm
Insulation Resistance 5GOhm
Plating Gold
Mating Retention With
Dimensions
Length 10.16mm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
