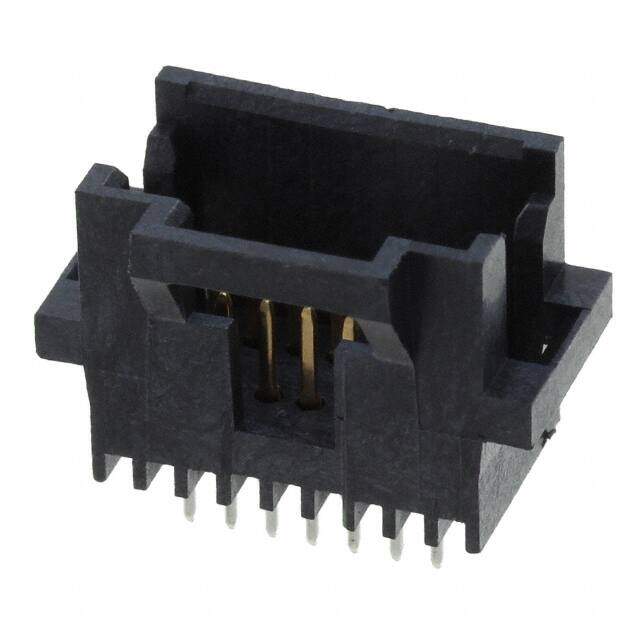

5-104068-9
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 14 SYSTEM 50 HDR DRST SHRD
PDF
/
Buying Options
Total Price: USD $3.04
Unit Price: USD $3.0448
≥1 USD $3.0448
≥10 USD $2.71392
≥100 USD $2.409616
≥500 USD $2.215699
≥1000 USD $1.980282
≥3000 USD $1.71717
Inventory: 1371
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.397mm
Contact Finish Thickness - Post 150.0μin 3.81μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Length 15.1mm
Height 10.0838mm
Technical
Keyed No
Mating Post Length 2.54mm
Contact Current Rating 1A
Dielectric Withstanding Voltage 500VAC V
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 30V
ELV Compliant
Mating Contact Pitch 0.05 inch
Insulation Resistance 5000000000Ohm
Operating Supply Voltage 30V
Lead Length 2.54mm
Housing Color Black
UL Flammability Code 94V-0
Body Breadth 0.344 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.125 3.18mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 2 Wall
Contact Length - Post 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency CSA
Reliability COMMERCIAL
Voltage - Rated AC 30V
Number of Conductors ONE
Pitch - Mating 0.050 1.27mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.390 9.91mm
Depth 8.73mm
Orientation Vertical
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Holder
HTS Code 8536.69.40.40
Voltage - Rated 30VAC
Number of Rows 2
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 14
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series AMPMODU System 50
Published 2008
Packaging Tube
Operating Temperature -65°C~105°C
Physical
Insulation Material Thermoplastic
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 19 Weeks
Alternative Model
