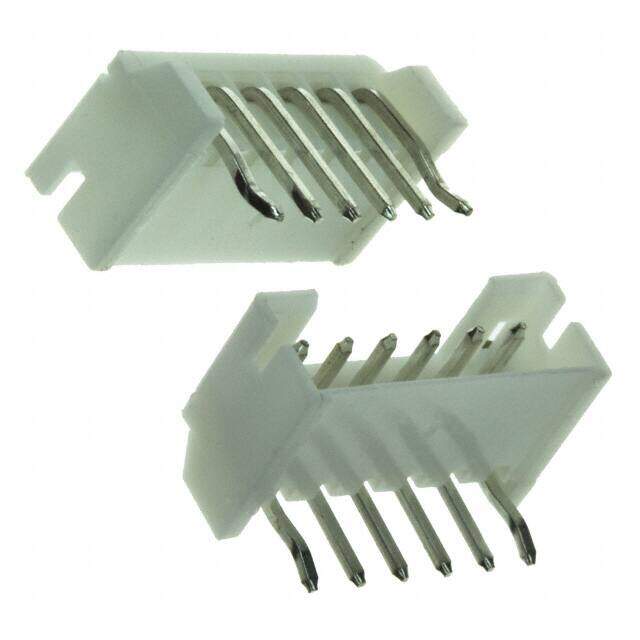

440055-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn High Performance Interconnect HDR 6 POS 2mm Solder RA Thru-Hole Bag
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.2552
≥1 USD $0.2552
≥10 USD $0.22792
≥100 USD $0.171072
≥500 USD $0.167323
Inventory: 56303
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.6mm
Length - Tail 3.4mm
Contact Finish Thickness - Post 80.0μin 2.03μm
Contact Finish Thickness - Mating 80.0μin 2.03μm
Plating Thickness 80μin
Width 7.7mm
Length 13.9954mm
Height 4.95mm
Technical
Mating Post Length 3.5mm
Insulation Diameter 900 μm
Mating Retention Without
Contact Current Rating 3A
Sealable No
Wire/Cable Gauge 24 AWG
Durability 50 Cycles
Wire/Cable Type Discrete
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 250V
ELV Compliant
Mating Contact Pitch 0.079 inch
Contact Resistance 20mOhm
Contact Style Straight
Rated Current (Signal) 3A
Operating Supply Voltage 250V
Lead Length 3.4036mm
UL Flammability Code 94V-0
Contact Gender Male
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.138 3.50mm
Number Of PCB Rows 1
Shrouding Shrouded - 3 Wall
Contact Length - Post 0.134 3.40mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.079 2.00mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.195 4.95mm
Depth 7.7mm
Terminal Pitch 2mm
Orientation Right Angle
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 6
Connector Type Header
ECCN Code EAR99
Termination Press-Fit, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series High Performance Interconnect (HPI)
Published 2006
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
PCB Mount Retention With
PCB Mounting Orientation Right Angle
Housing Material Nylon
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Brass, Tin
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 13 Weeks
