4-794680-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

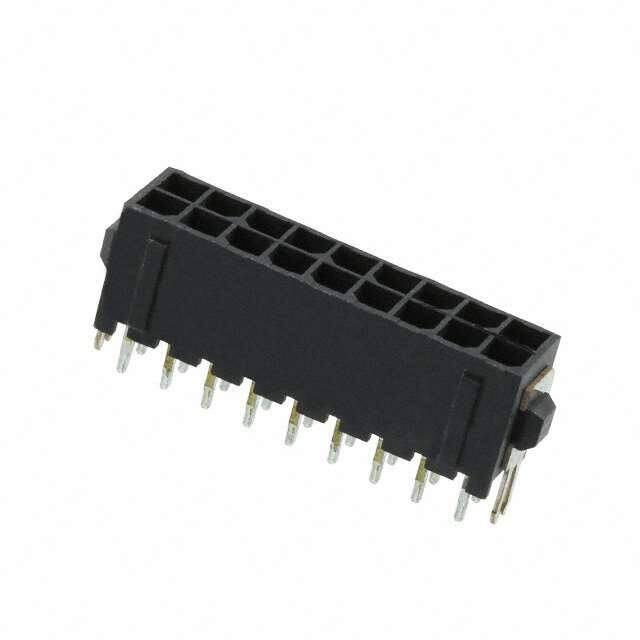

Pin & Socket Connectors 18P MICRO MNL ASSY VRT,THRU LF
PDF
/
Inventory: 1540
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Length 31mm
Technical
Contact Retention Without
Number of Signal Positions 0
Number of Power Positions 18
Circuit Application Power
Sealable No
Number of Ports 1
Plating Tin
Max Voltage Rating (AC) 250V
ELV Compliant
Operating Supply Voltage 250V
Lead Length 3.18mm
Housing Color Black
Contact Finish - Post Tin
Number of Contacts 18
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.125 3.18mm
Row Spacing - Mating 0.118 (3.00mm)
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.364 9.25mm
Depth 9.24mm
Orientation Vertical
Pitch 3mm
Current Rating (Amps) Varies by WireGAuge
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 250V
Number of Rows 2
Applications General Purpose
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 18
Connector Type Header
Termination Solder
Number of Terminations 18
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series Micro MATE-N-LOK
Published 2008
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 15 Weeks
Alternative Model
