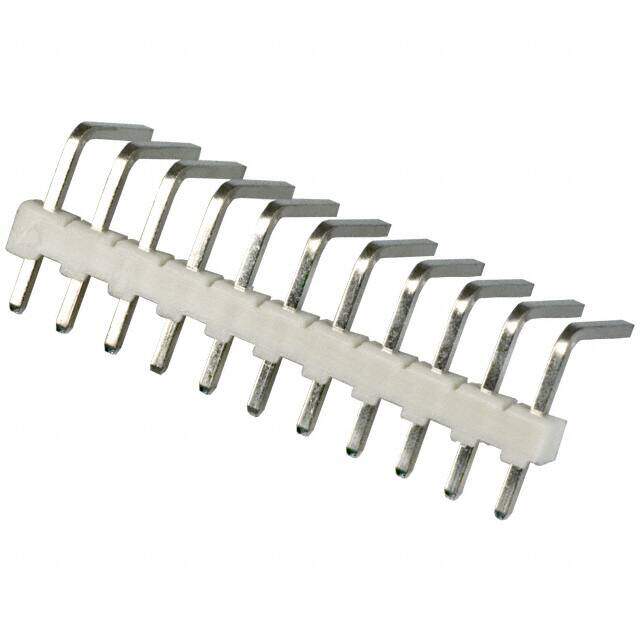

4-644694-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER RTANG .100 11POS TIN
PDF
/
Inventory: 1537
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Thermoplastic
Housing Material Polyester
PCB Mounting Orientation Right Angle
PCB Mount Retention With
Underplate Material Nickel
PCB Mount Alignment Without
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2008
Series MTA-100
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Header
Number of Positions 11
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Natural
Applications General Purpose
Number of Rows 1
Gender Male
Voltage - Rated 250VAC
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) Varies by WireGAuge
Pitch 2.54mm
Orientation Right Angle
Insulation Height 0.100 2.54mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.100 2.54mm
Insulation Color Natural
Voltage - Rated AC 250V
Approval Agency CSA
Contact Length - Post 0.110 2.79mm
Shrouding Unshrouded
Lead Pitch 2.54mm
Number of Contacts 11
Contact Finish - Post Tin
Contact Length - Mating 0.260 6.60mm
Contact Gender Male
Housing Color Natural
Operating Supply Voltage 250V
Contact Resistance 6mOhm
ELV Compliant
Max Voltage Rating (AC) 250V
Plating Tin
Sealable No
Contact Current Rating 5A
Circuit Application Signal
Mating Retention Without
Mating Post Length 6.6mm
Dimensions
Height 6.35mm
Length 27.64mm
Plating Thickness 1.27μm
Contact Finish Thickness - Mating 150.0μin 3.81μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Length - Tail 2.7686mm
PCB Thickness 1.6002mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
