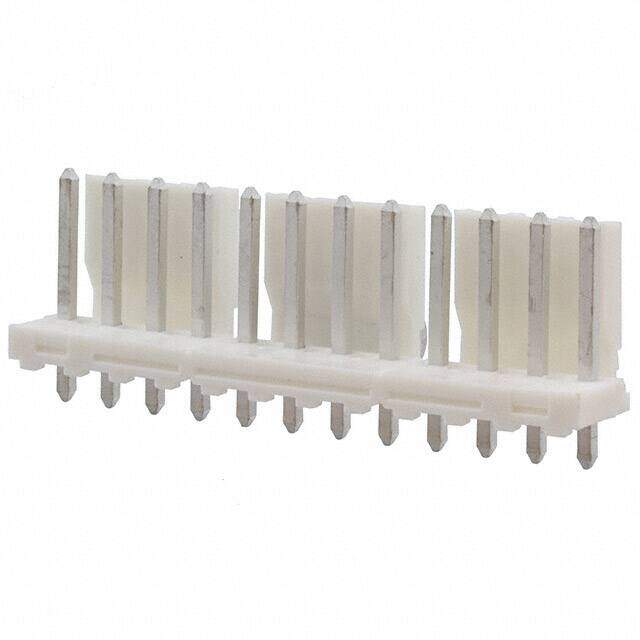

4-644611-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 12P MTA156 HDR POL WO PEGS LF
PDF
/
Inventory: 8332
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 150.0μin 3.81μm
Contact Finish Thickness - Mating 150.0μin 3.81μm
Technical
ELV Compliant
Overall Contact Length 0.700 17.78mm
Lead Length 3.18mm
Housing Color White
UL Flammability Code 94V-0
Contact Gender Male
Contact Length - Mating 0.450 11.43mm
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.125 3.18mm
Voltage - Rated AC 600V
Insulation Color Natural
Pitch - Mating 0.156 3.96mm
Current Rating 7A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.545 13.84mm
Terminal Pitch 3.96mm
Orientation Vertical
Current Rating (Amps) Varies by WireGAuge
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Friction Lock
Voltage - Rated 600VAC
Number of Rows 1
Applications General Purpose, Industrial
Number of Positions 12
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Keying Slot
JESD-609 Code e3
Series MTA-156
Published 2008
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Polyester
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
