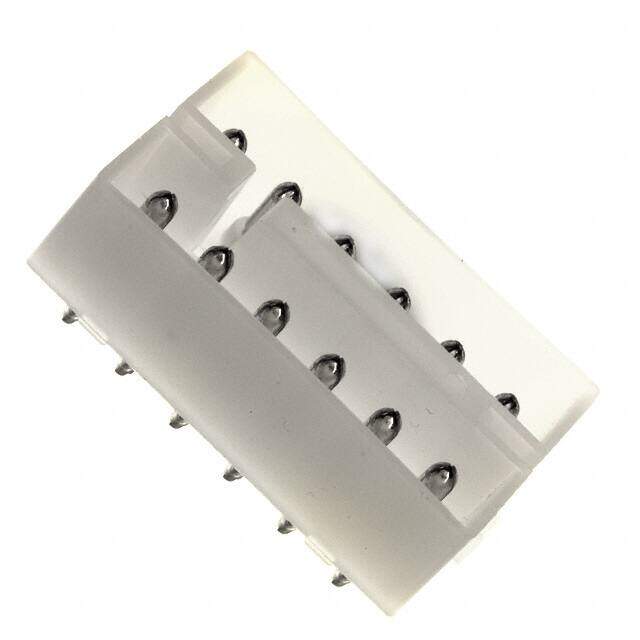

350220-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 12POS VERT DUAL TIN
PDF
/
Buying Options
Total Price: USD $1.83
Unit Price: USD $1.8304
≥1 USD $1.8304
≥10 USD $1.63328
≥100 USD $1.475672
≥500 USD $1.19379
≥1000 USD $1.052858
Inventory: 551
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2008
Series Commercial MATE-N-LOK
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Applications General Purpose
Number of Rows 2
Gender Male
Voltage - Rated 250VAC
HTS Code 8536.69.40.30
Fastening Type Detent Lock
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Orientation Vertical
Insulation Height 0.375 9.53mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 13A
Pitch - Mating 0.200 5.08mm
Number of Conductors ONE
Approval Agency CSA
Row Spacing - Mating 0.360 (9.14mm)
Contact Length - Post 0.150 3.81mm
Shrouding Shrouded - 4 Wall
Number of Contacts 12
Contact Length - Mating 0.181 4.60mm
Body Breadth 0.785 inch
Housing Color Natural
Empty Shell NO
Body Depth 0.375 inch
Operating Supply Voltage 250V
Insulation Resistance 500000000Ohm
ELV Compliant
Max Voltage Rating (AC) 250V
Number of Ports 1
Durability 50 Cycles
Max Voltage Rating (DC) 250.25kV
Sealable No
Contact Current Rating 12A
Circuit Application Power
Contact Retention Without
VDE Tested Yes
Contact Arrangement S0P8
Dimensions
Height 9.525mm
Length 32.766mm
Width 19.939mm
Plating Thickness 2.54μm
PCB Thickness 1.57mm
Compliance
Material Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
