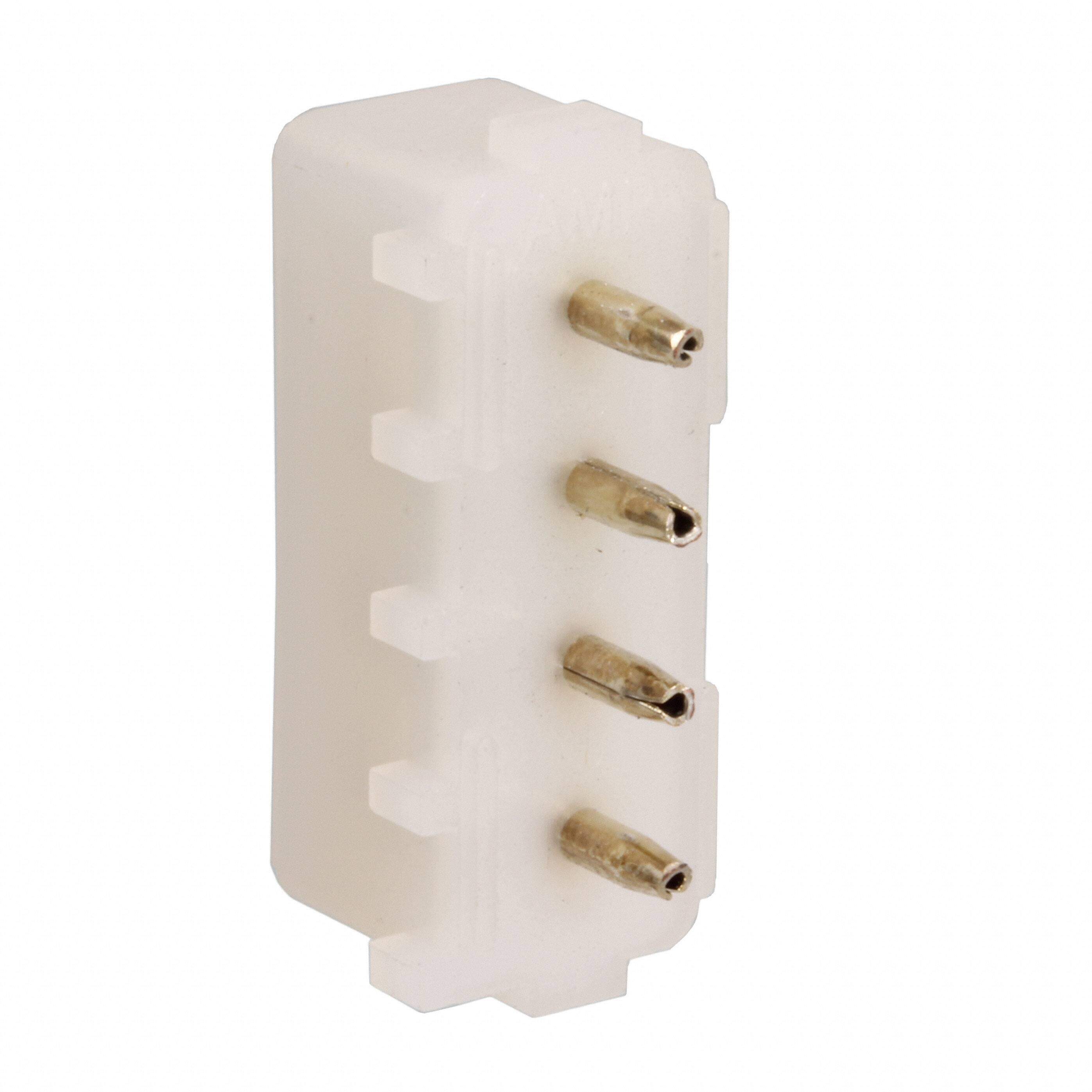

350211-3
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Bag
PDF
/
Buying Options
Total Price: USD $1.08
Unit Price: USD $1.084705
≥1 USD $1.084705
≥10 USD $1.023306
≥100 USD $0.965386
≥500 USD $0.910742
≥1000 USD $0.859186
Inventory: 7590
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 21 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
PCB Mounting Orientation Vertical
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2008
Series Commercial MATE-N-LOK
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Applications General Purpose
Number of Rows 1
Voltage - Rated 250VAC
Fastening Type Detent Lock
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) 12A
Depth 9.65mm
Insulation Height 0.375 9.53mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 13A
Pitch - Mating 0.200 5.08mm
Insulation Color Natural
Contact Length - Post 0.150 3.81mm
Shrouding Shrouded - 4 Wall
Number of Contacts 4
Contact Finish - Post Tin-Lead
Contact Length - Mating 0.181 4.60mm
Contact Gender Male
Empty Shell NO
ELV Non-Compliant
Max Voltage Rating (AC) 250V
Dimensions
Length 25.4mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length - Tail 4.57mm
Compliance
Material Flammability Rating UL94 V-2
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-2
