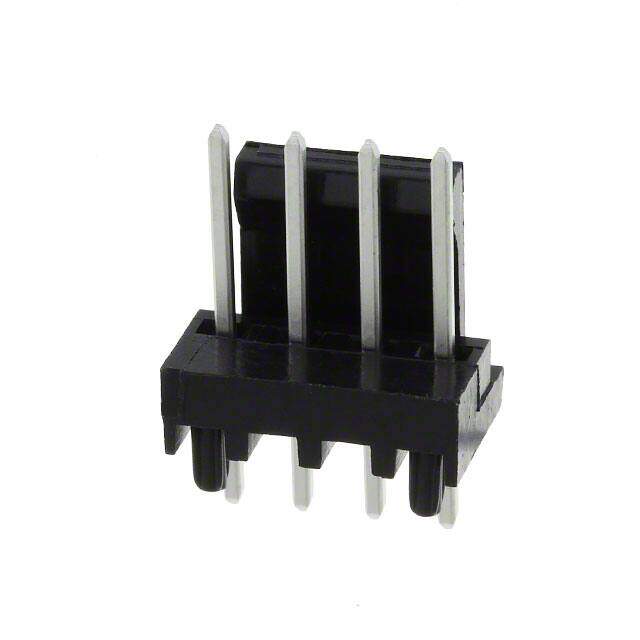

3-647609-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 04P MTA100 HDR ASSY F/L LF
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6864
≥1 USD $0.6864
≥10 USD $0.66352
≥100 USD $0.473986
≥500 USD $0.415439
≥1000 USD $0.362463
≥3000 USD $0.345074
Inventory: 5518
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material Polyester
PCB Mounting Orientation Vertical
PCB Mount Retention With
Underplate Material Nickel
PCB Mount Alignment With
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2013
Series MTA-100
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 4
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Black
Applications General Purpose
Number of Rows 1
Voltage - Rated 250VAC
Fastening Type Friction Lock
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) Varies by WireGAuge
Pitch 2.54mm
Orientation Vertical
Depth 6.35mm
Insulation Height 0.347 8.81mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Approval Agency CSA
Contact Length - Post 0.135 3.43mm
Shrouding Shrouded - 1 Wall
Number of Contacts 4
Contact Finish - Post Tin
Contact Length - Mating 0.290 7.37mm
Contact Gender Male
Housing Color Black
Lead Length 3.43mm
Operating Supply Voltage 250V
Overall Contact Length 0.550 13.97mm
Contact Style Straight
Contact Resistance 6mOhm
ELV Compliant
Max Voltage Rating (AC) 250V
Plating Tin
Sealable No
Contact Current Rating 5A
Circuit Application Signal
Mating Retention With
Mating Post Length 7.37mm
Dimensions
Height 8.81mm
Length 10.16mm
Plating Thickness 6.3μm
Length - Tail 3.43mm
PCB Thickness 1.5748mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
