3-647078-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

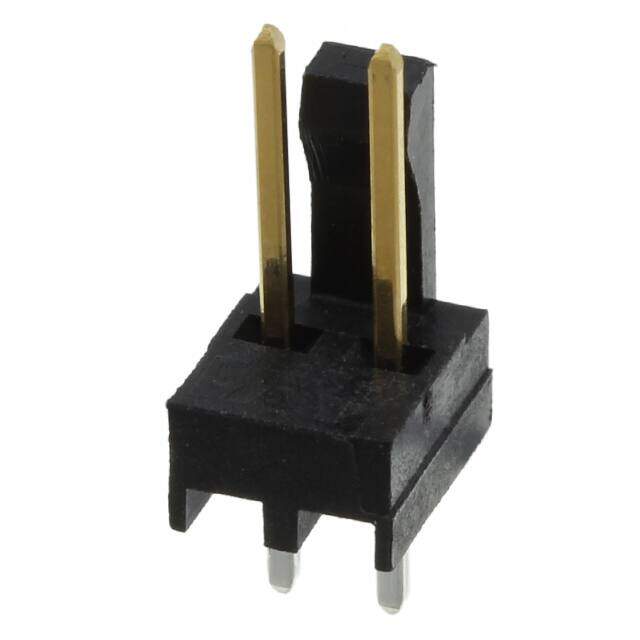

Headers & Wire Housings 02P MTA100 HDR HT FL 15AU LF
PDF
/
Inventory: 8393
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Material Copper Alloy
Contact Plating Gold, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA4T), Nylon 4T
Housing Material Nylon
PCB Mounting Orientation Vertical
PCB Mount Retention Without
Underplate Material Nickel
PCB Mount Alignment Without
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2008
Series MTA-100
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 2
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Black
Applications General Purpose
Number of Rows 1
Voltage - Rated 250VAC
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) Varies by WireGAuge
Pitch 2.54mm
Orientation Vertical
Depth 6.35mm
Insulation Height 0.347 8.81mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Voltage - Rated AC 250V
Approval Agency CSA
Contact Length - Post 0.135 3.43mm
Shrouding Shrouded - 1 Wall
Number of Contacts 2
Contact Finish - Post Tin
Contact Length - Mating 0.290 7.37mm
Contact Gender Male
Housing Color Black
Lead Length 3.18mm
Operating Supply Voltage 250V
Overall Contact Length 0.550 13.97mm
Contact Style Straight
Contact Resistance 6mOhm
ELV Compliant
Max Voltage Rating (AC) 250V
Plating Gold
Sealable No
Contact Current Rating 5A
Circuit Application Signal
Mating Retention With
Mating Post Length 7.37mm
Dimensions
Height 8.81mm
Length 5.08mm
Plating Thickness 380 nm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Length - Tail 3.43mm
PCB Thickness 1.5748mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
