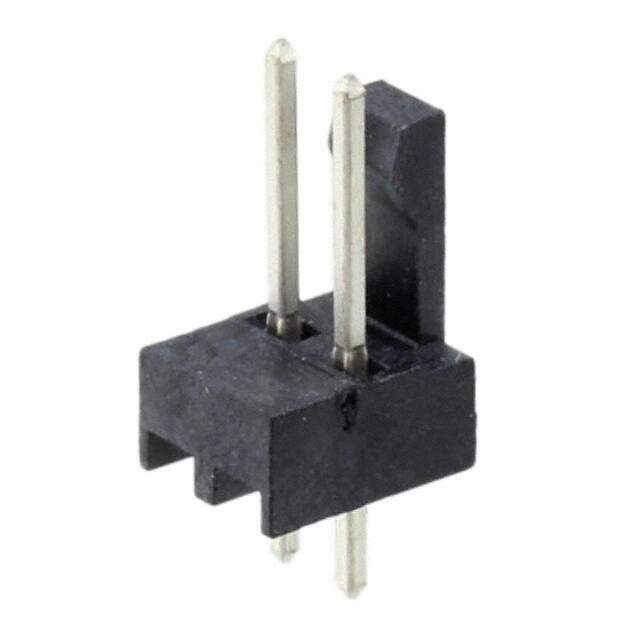

3-647050-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings HDR 1X02P VRT T/H
PDF
/
Buying Options
Total Price: USD $1.43
Unit Price: USD $1.4256
≥1 USD $1.4256
≥10 USD $1.30592
≥100 USD $1.042184
≥500 USD $0.932818
≥1000 USD $0.836317
≥3000 USD $0.796189
Inventory: 1665
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA4T), Nylon 4T
Housing Material Nylon
Underplate Material Nickel
PCB Mount Alignment Without
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2012
Series MTA-100
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 2
Applications General Purpose
Number of Rows 1
Voltage - Rated 250VAC
Additional Feature POLARIZED
HTS Code 8536.69.40.40
Fastening Type Friction Lock
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) Varies by WireGAuge
Orientation Vertical
Depth 6.35mm
Insulation Height 0.347 8.81mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Voltage - Rated AC 250V
Reliability COMMERCIAL
Approval Agency CSA
Contact Length - Post 0.135 3.43mm
Shrouding Shrouded - 1 Wall
Number Of PCB Rows 1
Contact Length - Mating 0.290 7.37mm
PCB Contact Pattern RECTANGULAR
Contact Gender Male
UL Flammability Code 94V-0
Housing Color Black
Lead Length 3.18mm
Operating Supply Voltage 250V
Overall Contact Length 0.550 13.97mm
Contact Style Straight
Contact Resistance 6mOhm
Insulation Resistance 5000000000Ohm
ELV Compliant
Max Voltage Rating (AC) 250V
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 750VAC V
Insertion Force-Max 8.896 N
Sealable No
Contact Current Rating 5A
Circuit Application Signal
Mating Retention With
Mating Post Length 7.37mm
Dimensions
Height 8.81mm
Length 5.08mm
Plating Thickness 6.3μm
Contact Finish Thickness - Mating 80.0μin 2.03μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Length - Tail 3.43mm
PCB Thickness 1.5748mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
