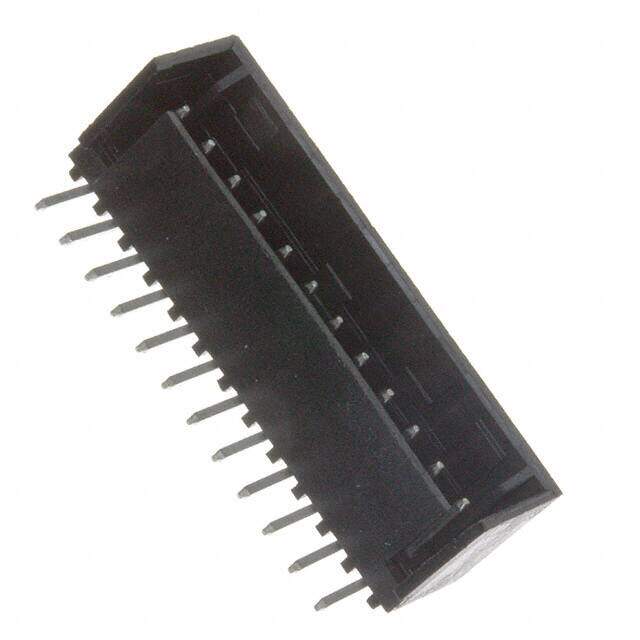

3-644488-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER RTANG .100 12POS TIN
PDF
/
Inventory: 9184
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyester
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2008
Series MTA-100
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 12
Applications General Purpose
Number of Rows 1
Voltage - Rated 250VAC
Fastening Type Friction Lock
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) Varies by WireGAuge
Insulation Height 0.343 8.71mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.130 3.30mm
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.200 5.08mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
